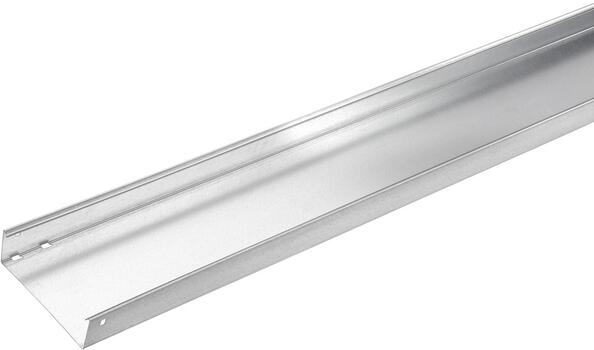

KB184 Unperf. tray 85x400 T=0.8 L=3m PG
Commercialized
Item number
CSU78004002
Local code:
*
GTIN:
3606489497736
Description:
KB184 Unperf. tray 85x400 T=0.8 L=3m PG
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
KB184 Unperf. tray 85x400 T=0.8 L=3m PG
Medium description
Stago - KB184 unperforated cable tray 85x400mm - T=0.8mm - L=3m - pre-galvanized
Length
3000 mm
Width
400 mm
Height
85 mm
Material
Steel
Material type or surface treatment
Pre-galvanized
Environmental corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
KB184
GTIN
3606489497736
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
* mm
Width (EF000008)
* mm
Material thickness (EF000386)
* mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
* mm²
With cover (EF007965)
*
Side wall perforation (EF001122)
*
Mounting perforation in bottom (EF004545)
*
NATO (EF006059)
*
Model (EF000010)
*
Wide span model (EF006397)
*
Suitable for circuit integrity (EF007806)
*
Material (EF002169)
*
Stainless steel, pickled (EF006388)
*
Material quality (EF001257)
*
Surface protection (EF000139)
*
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
* kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
13.85 kg
Length pack 1
3000 mm
Width pack 1
400 mm
Height pack 1
85 mm
Customs code
7308909800
Net weight
13.85 kg
Country of origin
NL
Certification
ETIM class
EC000047
Environmental
GWP Total A1-A3
34.2 kgCO2e
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
