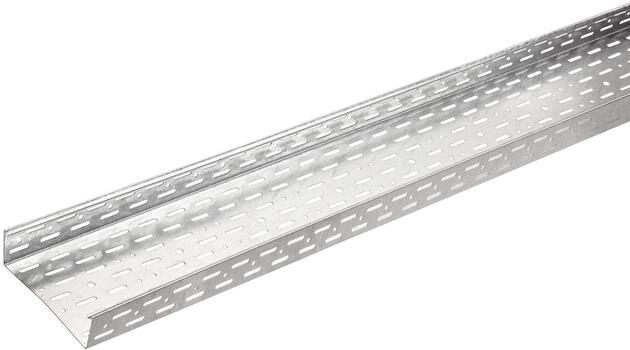

KB184 perf 110x150x1.5mm L=3m PG

Commercialized

Item number

CSU71011506

Local code: *

GTIN: *

Description: KB184 perf 110x150x1.5mm L=3m PG

Wibe Group. CSU71011506 - Stago - KB184 tray perforated 110x150mm L=3m 1.5mm pre-galvanized

Data Sheet

Product status

Commercialized

Short description

KB184 perf 110x150x1.5mm L=3m PG

Medium description

Stago - KB184 tray perforated 110x150mm L=3m 1.5mm pre-galvanized

Width

150 mm

Material

Steel

Material type or surface treatment

Pre-galvanized

Environmental corrosion class

Activity

Cable support systems

Product family

Cable trays

Brand

Stago

Range

KB184

Height (EF000040)

110 mm

Width (EF000008)

150 mm

Material thickness (EF000386)

1.5 mm

Length (EF001438)

3000 mm

Useful cross section (EF005140)

16500 mm²

With cover (EF007965)

Side wall perforation (EF001122)

Yes

Mounting perforation in bottom (EF004545)

Yes

NATO (EF006059)

Model (EF000010)

Without connector

Wide span model (EF006397)

Suitable for circuit integrity (EF007806)

Material (EF002169)

Steel

Stainless steel, pickled (EF006388)

Material quality (EF001257)

Other

Surface protection (EF000139)

Continuously galvanized

Colour (EF000007)

RAL (EF000116)

Weight (EF000167)

* kg/m

Max. safe working load according to IEC 61537 (EF016305)

* N/m

Span between supports according to IEC 61537 (EF015363)

* mm

Load test type according to IEC 61537 (EF015362)

Type I

ETIM class

EC000047

Environmental Documents

Item number

CSU71011506

Local code: *

GTIN: *

Description: KB184 perf 110x150x1.5mm L=3m PG

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
