KB184 Perf. tray 85x500 T=1.0 L=3m PG
KB184 Perf. tray 85x500 T=1.0 L=3m PG
Table of contents
/storage/20695F179FD034ABAB20FCB32A5496D573516ED94D4D31AA82AA0C0B12E1323C/8d23100a2a884b248c75e975fab24376/jpg/media/0343bb738db54b61a2278a16e8ee3545/CSU78015004.jpg
Commercialized
Item number
CSU78015004
Local code:
*
GTIN:
3606480880872
Description:
KB184 Perf. tray 85x500 T=1.0 L=3m PG
Corrosion class
Wibe Group. CSU78015004 - Stago - KB184 tray perforated 85x500mm L=3m 1mm pre-galvanized
More Info
Contact seller
Contact support
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
KB184 Perf. tray 85x500 T=1.0 L=3m PG
Medium description

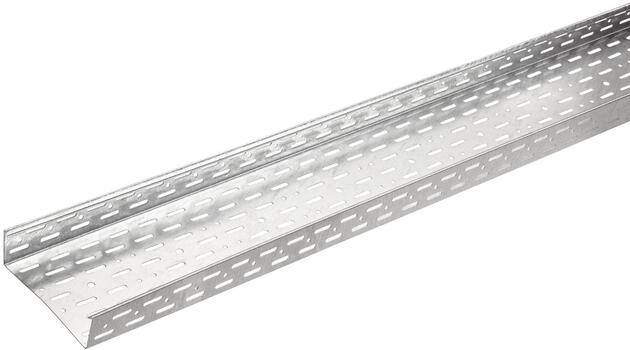

Stago - KB184 perforated cable tray 85x500mm - T=1mm - L=3m - pre-galvanized
Length
3000 mm
Width
500 mm
Height
85 mm
Material
Steel
Material type or surface treatment
Pre-galvanized
Corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
KB184
GTIN
3606480880872
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
85 mm
Width (EF000008)
500 mm
Material thickness (EF000386)
1 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
42500 mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
Yes
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
Yes
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
*
Surface protection (EF000139)
Continuously galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
* kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Logistic
Customs code
7308909800
Net weight
13.76 kg
Country of origin
NL
Certification
ETIM class
EC000047
Product downloads
Environmental Documents
CSU78015004_reach.pdf
pdf 77 kb
CSU78015004_rohs.pdf
pdf 76 kb
Accessories
c2
Cable tray cover 500 L=2m PG
Item number:
CSU08167004
GTIN:
8712186037511
c2
Connector H=85 L=300
Item number:
CSU78030100
GTIN:
8712186028359
c2
Separation wall H=85 L=3m PG
Item number:
CSU78020000
GTIN:
3606489448325
