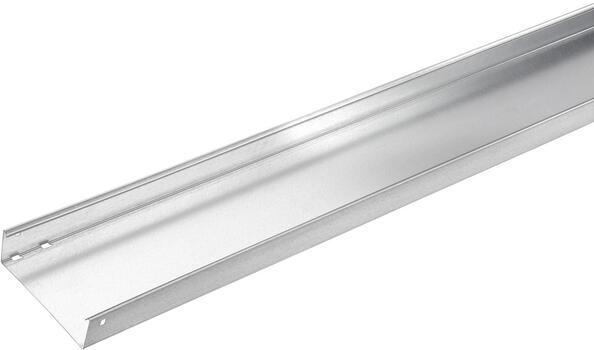

KG281 Unperf tray 60x200 T=0.8 L=3m PG
Commercialized
Item number
CSU08603402
Local code:
*
GTIN:
*
Description:
KG281 Unperf tray 60x200 T=0.8 L=3m PG
Wibe Group. CSU08603402 - Stago - KG281 tray closed 60x200mm L=3m 0.8mm pre-galvanized
Properties
Commercial and Web
Short description
KG281 Unperf tray 60x200 T=0.8 L=3m PG
Medium description
Stago - KG281 unperforated cable tray 60x200mm - T=0.8mm - L=3m - pre-galvanized
Length
3000 mm
Width
200 mm
Height
60 mm
Material
Steel
Material type or surface treatment
Pre-galvanized
Corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
KG281
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
60 mm
Width (EF000008)
200 mm
Material thickness (EF000386)
.8 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
12000 mm²
With cover (EF007965)
*
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
*
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
*
Surface protection (EF000139)
Continuously galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
* kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Logistic
Weight pack 1
2.141 kg
Length pack 1
1000 mm
Width pack 1
200 mm
Height pack 1
60 mm
Customs code
7308909800
Certification
ETIM class
EC000047
Status product
Product status
Commercialized
Product downloads
Environmental Documents
