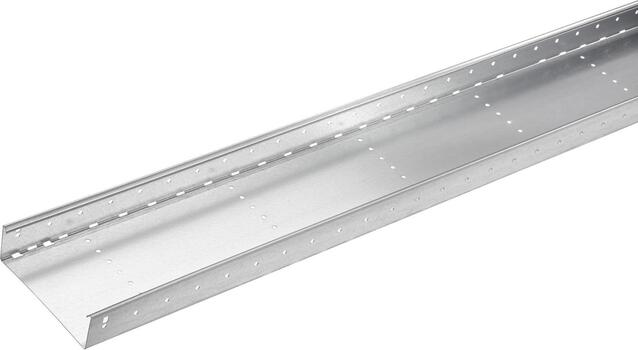

KG281 Unperf tray 60x600 T=1.0 L=3m PG
Commercialized
Item number
CSU08608404
Local code:
*
GTIN:
8712186037986
Description:
KG281 Unperf tray 60x600 T=1.0 L=3m PG
Wibe Group. CSU08608404 - Stago - KG281 tray closed 60x600mm L=3m 1mm pre-galvanized
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
KG281 Unperf tray 60x600 T=1.0 L=3m PG
Medium description
Stago - KG281 unperforated cable tray 60x600mm - T=1mm - L=3m - pre-galvanized
Length
3000 mm
Width
600 mm
Height
60 mm
Material
Steel
Material type or surface treatment
Pre-galvanized
Environmental corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
KG281
GTIN
8712186037986
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
60 mm
Width (EF000008)
600 mm
Material thickness (EF000386)
1 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
36000 mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
5.8 kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
Type I
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
17.4 kg
Length pack 1
3000 mm
Width pack 1
600 mm
Height pack 1
60 mm
Customs code
7308909800
Net weight
17.4 kg
Certification
ETIM class
EC000047
Environmental
GWP Total A1-A3
42.99 kgCO2e
