KG281 Reinforced 60x500 T=1.0 L=3m R9005/30
Commercialized
Item number
CSU0860754M905
Local code:
*
GTIN:
8720871002829
Description:
KG281 Reinforced 60x500 T=1.0 L=3m R9005/30
Properties
Commercial and Web
Short description
KG281 Reinforced 60x500 T=1.0 L=3m R9005/30
Medium description

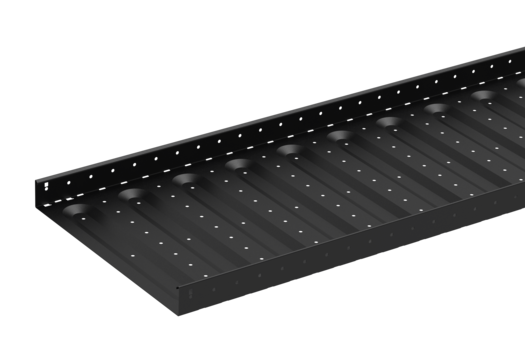

Stago - KG281 reinforced cable tray 60x500mm - T=1mm - L=3m - pre-galvanized black RAL9005/30
Length
3000 mm
Width
500 mm
Height
60 mm
Material
Steel
Material type or surface treatment
Painted
Corrosion class
C2
Colour
Black RAL9005/30
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
KG281
GTIN
8720871002829
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
60 mm
Width (EF000008)
500 mm
Material thickness (EF000386)
1 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
* mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
Yes
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
*
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized and coated
Colour (EF000007)
Black
RAL (EF000116)
9005
Weight (EF000167)
* kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Logistic
Customs code
73089098
Net weight
14.862 kg
Country of origin
NL
Certification
ETIM class
EC000047
Status product
Product status
Commercialized
Product downloads
Environmental Documents
