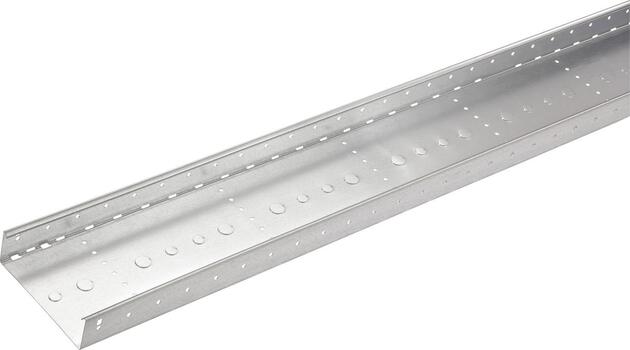

KG281 Knock-out tray 60x70 T=0.8 L=3 PG
Commercialized
Item number
CSU08601002
Local code:
*
GTIN:
*
Description:
KG281 Knock-out tray 60x70 T=0.8 L=3 PG
Wibe Group. CSU08601002 - Stago - KG281 tray knock out holes 60x70mm L=3m 0.8mm pre-galvanized
Properties
Commercial and Web
Short description
KG281 Knock-out tray 60x70 T=0.8 L=3 PG
Medium description
Stago - KG281 cable tray w knock-out holes 60x70mm - T=0.8mm - L=3m - pre-galvanized
Length
3000 mm
Width
70 mm
Height
60 mm
Material
Steel
Material type or surface treatment
Pre-galvanized
Corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
KG281
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
60 mm
Width (EF000008)
70 mm
Material thickness (EF000386)
.8 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
4200 mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
Yes
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
*
Surface protection (EF000139)
Continuously galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
* kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Logistic
Weight pack 1
1.296 kg
Length pack 1
1000 mm
Width pack 1
70 mm
Height pack 1
60 mm
Customs code
7308909800
Certification
ETIM class
EC000047
Status product
Product status
Commercialized
