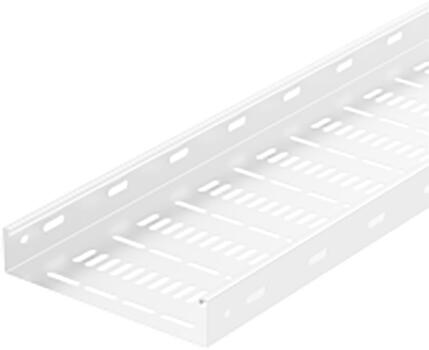

Cable tray perf W3/40-600 3m PG white
Commercialized
Item number
737545
Local code:
*
GTIN:
7321677375455
Description:
Cable tray perf W3/40-600 3m PG white
Wibe Group. 737545 - Wibe - cable tray W3/40-600 - perforated - 3 m - steel pre-galvanized - white
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Cable tray perf W3/40-600 3m PG white
Medium description
Wibe - cable tray W3/40-600 - perforated - 3 m - steel pre-galvanized - white
Length
3000 mm
Width
600 mm
Height
40 mm
Material
Steel
Material type or surface treatment
Painted
Environmental corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Wibe
Range
W3
GTIN
7321677375455
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
40 mm
Width (EF000008)
600 mm
Material thickness (EF000386)
1.5 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
24000 mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
Yes
NATO (EF006059)
Yes
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
*
Surface protection (EF000139)
Continuously galvanized and coated
Colour (EF000007)
White
RAL (EF000116)
9010
Weight (EF000167)
6.8 kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
Type I
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
20.4 kg
Length pack 1
3000 mm
Width pack 1
600 mm
Height pack 1
40 mm
Pack 4 type
Pallet
Quantity pack 4
16
Weight pack 4
349 kg
Length pack 4
3000 mm
Width pack 4
800 mm
Height pack 4
500 mm
Customs code
73089059
Net weight
20.4 kg
Country of origin
SE
Certification
ETIM class
EC000047
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
