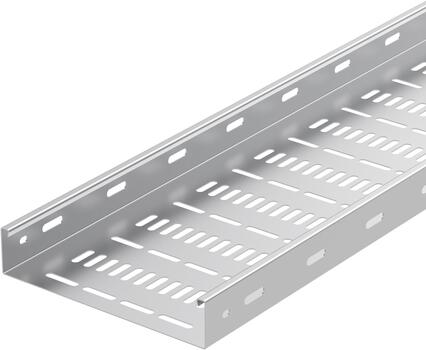

Cable tray perf W3/40-50 3m PG
Commercialized
Item number
735388
Local code:
*
GTIN:
7321677353880
Description:
Cable tray perf W3/40-50 3m PG
Wibe Group. 735388 - Wibe - cable tray W3/40-50 - perforated - 3 m - steel pre-galvanized
Properties
Commercial and Web
E-number unit
1376920
Short description
Cable tray perf W3/40-50 3m PG
Medium description
Wibe - cable tray W3/40-50 - perforated - 3 m - steel pre-galvanized
Length
3000 mm
Width
50 mm
Height
40 mm
Material
Steel
Material type or surface treatment
Pre-galvanized
Corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Wibe
Range
W3
GTIN
7321677353880
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
40 mm
Width (EF000008)
50 mm
Material thickness (EF000386)
1 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
4654125 mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
Yes
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
* kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
3.1 kg
Length pack 1
3000 mm
Width pack 1
50 mm
Height pack 1
40 mm
Pack 4 type
Pallet
Quantity pack 4
192
Weight pack 4
620 kg
Length pack 4
3000 mm
Width pack 4
800 mm
Height pack 4
500 mm
Customs code
73089059
Country of origin
SE
Certification
ETIM class
EC000047
Status product
Product status
Commercialized
Environmental
GWP Total A1-A3
8.804 kgCO2e
Product downloads
Environmental Documents
