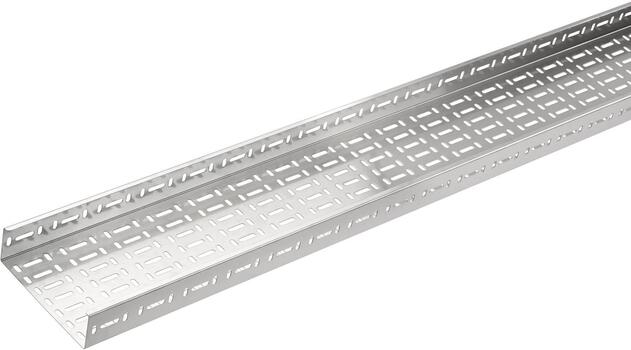

TRAY ES114 PERF.L=3M 300X110 T=1MM SS304
Commercialized
Item number
CSU71703034
Local code:
*
GTIN:
3606480686641
Description:
TRAY ES114 PERF.L=3M 300X110 T=1MM SS304
Wibe Group. CSU71703034 - Stago - ES114 tray perforated 110x300mm L=3m 1mm stainless steel AISI 304
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
TRAY ES114 PERF.L=3M 300X110 T=1MM SS304
Medium description
Stago - ES114 tray perforated 110x300mm L=3m 1mm stainless steel AISI 304
Length
3000 mm
Width
300 mm
Height
110 mm
Material
Stainless steel
Material type or surface treatment
AISI304
Environmental corrosion class
C5
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
ES114
GTIN
3606480686641
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
110 mm
Width (EF000008)
300 mm
Material thickness (EF000386)
1 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
33000 mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
Yes
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Stainless steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Stainless steel V2A
Surface protection (EF000139)
Other
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
3.3 kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
Type I
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
9.89 kg
Length pack 1
3000 mm
Width pack 1
300 mm
Height pack 1
110 mm
Customs code
7308909800
Net weight
9.89 kg
Country of origin
NL
Certification
ETIM class
EC000047
