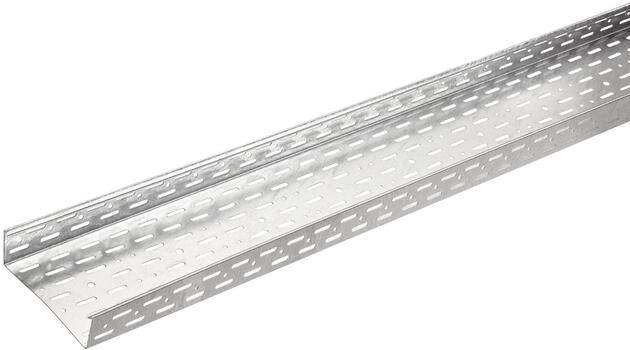

KB184 Perf. tray 110x300 T=1.5 L=3m HDG
Commercialized
Item number
CSU71013026
Local code:
*
GTIN:
3606489448660
Description:
KB184 Perf. tray 110x300 T=1.5 L=3m HDG
Wibe Group. CSU71013026 - Stago - TV184 tray perforated 110x300mm L=3m 1.5mm hot-dip galvanized
Properties
Commercial and Web
Short description
KB184 Perf. tray 110x300 T=1.5 L=3m HDG
Medium description
Stago - KB184 perforated cable tray 110x300mm - T=1.5mm - L=3m - hot-dip galvanized
Length
3000 mm
Width
300 mm
Height
110 mm
Material
Steel
Material type or surface treatment
Hot-dip galvanized
Corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
KB184; TV184
GTIN
3606489448660
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
110 mm
Width (EF000008)
300 mm
Material thickness (EF000386)
1.5 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
33000 mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
Yes
Mounting perforation in bottom (EF004545)
Yes
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
*
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
* kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
6.165 kg
Length pack 1
1000 mm
Width pack 1
300 mm
Height pack 1
110 mm
Customs code
7308909800
Country of origin
NL
Certification
ETIM class
EC000047
Status product
Product status
Commercialized
Product downloads
Environmental Documents
