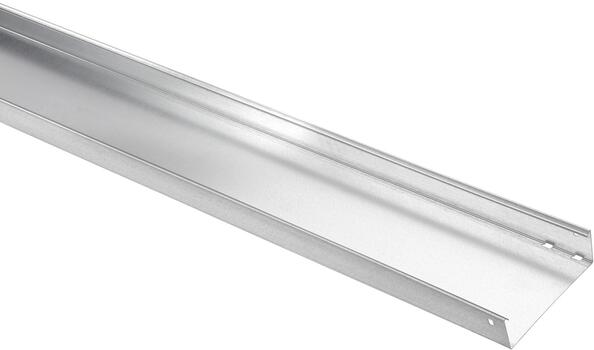

KB184 Unperf. 60x400 T=1.0 L=3m Zplus
Commercialized
Item number
CSU86004004
Local code:
*
GTIN:
3606489832940
Description:
KB184 Unperf. 60x400 T=1.0 L=3m Zplus
Wibe Group. CSU86004004 - Stago - Unperfored cable tray ZM W=400,H=60,T=1
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
KB184 Unperf. 60x400 T=1.0 L=3m Zplus
Medium description
Stago - KB184 unperforated cable tray 60x400mm - T=1mm - L=3m - zinc+
Length
3000 mm
Width
400 mm
Height
60 mm
Material
Steel
Material type or surface treatment
Zinc+
Environmental corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
KB184
GTIN
3606489832940
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
60 mm
Width (EF000008)
400 mm
Material thickness (EF000386)
1 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
24000 mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
No
Mounting perforation in bottom (EF004545)
No
NATO (EF006059)
No
Model (EF000010)
Without connector
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
*
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized zinc-magnesium
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
4.22 kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
Type I
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
12.67 kg
Length pack 1
3000 mm
Width pack 1
400 mm
Height pack 1
60 mm
Customs code
7308909800
Net weight
12.67 kg
Country of origin
NL
Certification
ETIM class
EC000047
Environmental
GWP Total A1-A3
28.7609 kgCO2e
