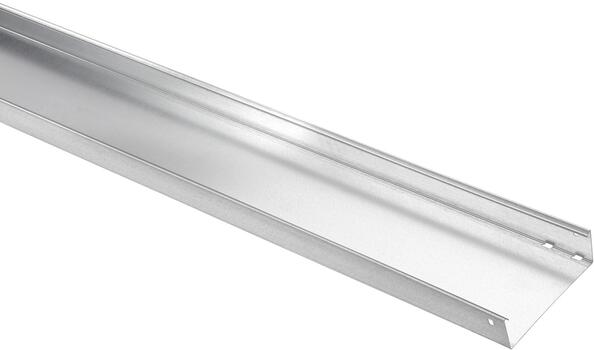

KB184 Unperf. 60x500 T=1.0 L=3m Zplus
Commercialized
Item number
CSU86005004
Local code:
*
GTIN:
3606489832957
Description:
KB184 Unperf. 60x500 T=1.0 L=3m Zplus
Wibe Group. CSU86005004 - Stago - Unperfored cable tray ZM W=500,H=60,T=1
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
KB184 Unperf. 60x500 T=1.0 L=3m Zplus
Medium description
Stago - KB184 unperforated cable tray 60x500mm - T=1mm - L=3m - zinc+
Length
3000 mm
Width
500 mm
Height
60 mm
Material
Steel
Material type or surface treatment
Zinc+
Corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
Range
KB184
GTIN
3606489832957
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
60 mm
Width (EF000008)
500 mm
Material thickness (EF000386)
1 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
* mm²
With cover (EF007965)
No
Side wall perforation (EF001122)
*
Mounting perforation in bottom (EF004545)
*
NATO (EF006059)
No
Model (EF000010)
*
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
*
Material quality (EF001257)
*
Surface protection (EF000139)
*
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
* kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Logistic
Customs code
7308909800
Net weight
15.03 kg
Country of origin
NL
Certification
ETIM class
EC000047
Product downloads
Environmental Documents
