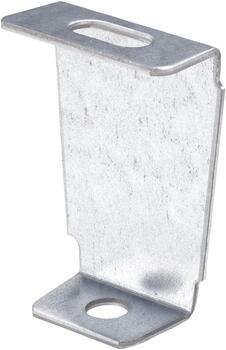

Ceiling attach adj SS304
Commercialized
Item number
CSU08020070
Local code:
*
GTIN:
8712186114656
Description:
Ceiling attach adj SS304
Wibe Group. CSU08020070 - Stago - ceiling attachment - steel - pre-galvanized - RAL9010
Properties
Commercial and Web
Short description
Ceiling attach adj SS304
Medium description
Stago - ceiling attachment - steel - pre-galvanized - RAL9010
Material
Steel
Material type or surface treatment
Painted
Corrosion class
C2
Base
Activity
Cable support systems
Product family
Support system
Brand
Stago
GTIN
8712186114656
ETIM (EC000896-Ceiling bracket for cable support system)
Length (EF001438)
* mm
Width (EF000008)
25 mm
Height (EF000040)
72 mm
Diameter (EF000551)
* mm
Thread size (metric) (EF003563)
10
Model (EF000010)
Ceiling bracket
Load bearing capacity (EF002918)
.6 kN
Hinging (EF001076)
No
Adjustable (EF000996)
Yes
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized and coated
RAL (EF000116)
9010
Colour (EF000007)
White
Logistic
Weight pack 1
.073 kg
Length pack 1
70 mm
Width pack 1
51 mm
Height pack 1
25 mm
Customs code
7308909800
Certification
ETIM class
EC000896
Status product
Product status
Commercialized
Product downloads
Environmental Documents
