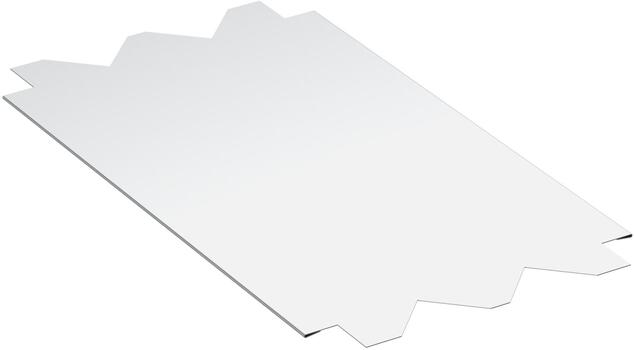

Bend plate B31/422 Aluminium

Commercialized

Item number

1149229

Local code: *

GTIN: 7332227012294

Description: Bend plate B31/422 Aluminium

Wibe Group. 1149229 - Defem - bend plate B31/422 - aluminium

Data Sheet

Product status

Commercialized

Short description

Bend plate B31/422 Aluminium

Medium description

Defem - bend plate B31/422 - aluminium

Material

Aluminium

Environmental corrosion class

Activity

Cable support systems

Product family

Common accessories

Brand

Defem

Range

Defem

GTIN

7332227012294

Angle (EF001218)

Change of direction (EF005210)

Horizontal

Width (EF000008)

390 mm

Length (EF001438)

* mm

Suitable for cable tray (EF005166)

Suitable for wire mesh tray (EF005163)

Yes

Suitable for cable ladder (EF005165)

Type of fastening (EF002442)

Snapped on

Hinging (EF001076)

Suitable for circuit integrity (EF007806)

Material (EF002169)

Aluminium

Material quality (EF001257)

Surface protection (EF000139)

Colour (EF000007)

RAL (EF000116)

Pack 1 type

Each

Quantity pack 1

Weight pack 1

0.17 kg

Length pack 1

340 mm

Width pack 1

387 mm

Height pack 1

1 mm

Customs code

73089098

Net weight

0.17 kg

Country of origin

ETIM class

EC002402

Environmental Documents

Item number

1149229

Local code: *

GTIN: 7332227012294

Description: Bend plate B31/422 Aluminium

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)

Bend plate B31/422 Aluminium
