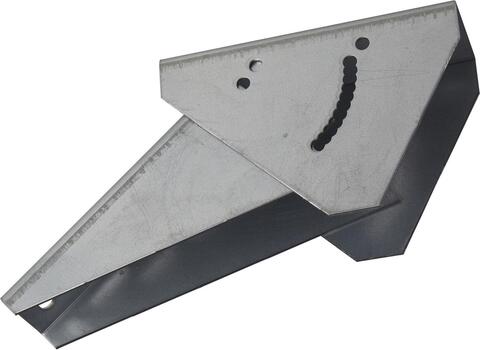

Adjustable bracket set 500 Z+
Commercialized
Item number
CSU4558550
Local code:
*
GTIN:
8428031160388
Description:
Adjustable bracket set 500 Z+
Wibe Group. CSU4558550 - Stago - Performa - adjustable bracket set - ZnAlMg - 140 x 562 x 55
Properties
Commercial and Web
Short description
Adjustable bracket set 500 Z+
Medium description
Performa - adjustable bracket set 500 - 140 x 562 x 55 mm - steel ZnAl Mg
Width
500
Material
Steel
Material type or surface treatment
Zinc+
Corrosion class
C4
Base
Activity
Cable support systems
Product family
Support system
Brand
Stago
Range
Performa
GTIN
8428031160388
ETIM (EC000022-Bracket for cable support system)
Length (EF001438)
* mm
Width (EF000008)
562 mm
Height (EF000040)
140 mm
Suitable for cable management system width (EF008339)
500-500 mm
Model (EF000010)
Wall bracket
Angle (EF005434)
* °
Load bearing capacity (EF002918)
* kN
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Material quality (EF001257)
*
Surface protection (EF000139)
Hot-dip galvanized and coated
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
1.738
Length pack 1
562 mm
Width pack 1
55
Height pack 1
140
Customs code
7314500000
Country of origin
NL
Certification
ETIM class
EC000022
Status product
Product status
Commercialized
Product downloads
Environmental Documents
