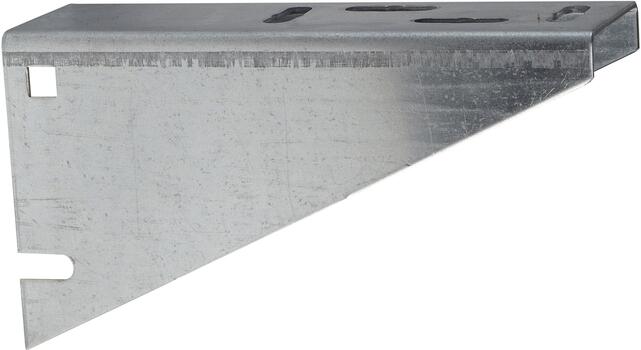

Pendant bracket 600 Z+

Commercialized

Item number

CSU4548960

Local code: *

GTIN: 8428031160920

Description: Pendant bracket 600 Z+

Wibe Group. CSU4548960 - Stago - Performa - pendant bracket - ZnAlMg - 660 x 50 x 110

Data Sheet

Product status

Commercialized

Short description

Pendant bracket 600 Z+

Medium description

Performa - pendant bracket 600 - 660 x 50 x 110 mm - steel ZnAlMg

Width

600 mm

Material

Steel

Material type or surface treatment

Zinc+

Environmental corrosion class

Activity

Cable support systems

Product family

Support system

Brand

Stago

Range

Performa

GTIN

8428031160920

Length (EF001438)

* mm

Width (EF000008)

* mm

Height (EF000040)

105 mm

Suitable for cable management system width (EF008339)

600-600 mm

Model (EF000010)

Other

Angle (EF005434)

* °

Load bearing capacity (EF002918)

* kN

Suitable for circuit integrity (EF007806)

Material (EF002169)

Steel

Material quality (EF001257)

Surface protection (EF000139)

Hot-dip galvanized and coated

Colour (EF000007)

RAL (EF000116)

Pack 1 type

Each

Quantity pack 1

Weight pack 1

1.783 kg

Length pack 1

670 mm

Width pack 1

110 mm

Height pack 1

30 mm

Customs code

7314500000

Net weight

1.78 kg

ETIM class

EC000022

Environmental Documents

Item number

CSU4548960

Local code: *

GTIN: 8428031160920

Description: Pendant bracket 600 Z+

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
