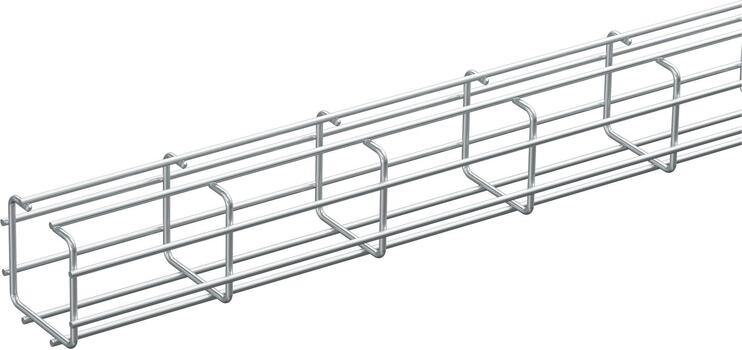

C-Mesh tray 75/75x4 2.5m HDG
Commercialized
Item number
1149232
Local code:
*
GTIN:
7332227012324
Description:
C-Mesh tray 75/75x4 2.5m HDG
Wibe Group. 1149232 - Defem - mesh tray - C-shape - 75/75 - wire dia 4 mm - 2.5 m - steel hot-dip galvanized
Properties
Commercial and Web
Short description
C-Mesh tray 75/75x4 2.5m HDG
Medium description
Defem - mesh tray C-shape - 75/75 - wire dia 4 mm - 2.5 m - steel hot-dip galvanized
Length
2500
Width
75
Height
75
Material
Steel
Material type or surface treatment
Hot-dip galvanized
Corrosion class
C4
Base
Activity
Cable support systems
Product family
Mesh trays
Brand
Defem
Range
Defem
GTIN
7332227012324
ETIM (EC000853-Mesh cable tray)
Profile shape (EF005179)
C-shape
Height (EF000040)
75 mm
Width (EF000008)
75 mm
Wire diameter (EF004603)
4 mm
Length (EF001438)
2500 mm
Useful cross section (EF005140)
5625 mm²
Model (EF000010)
Without connector
Screwless connector (EF008184)
No
Integrated partition (EF004799)
None
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
Yes
Material (EF002169)
Steel
Material quality (EF001257)
Other
Surface protection (EF000139)
Hot-dip galvanized
Colour (EF000007)
*
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Weight (EF000167)
1.11 kg/m
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
2.6
Length pack 1
2503 mm
Width pack 1
75
Height pack 1
75
Customs code
73089098
Country of origin
SE
Certification
ETIM class
EC000853
Status product
Product status
Commercialized
Environmental
GWP Total A1-A3
7.254 kgCO2e
Product downloads
Environmental Documents
