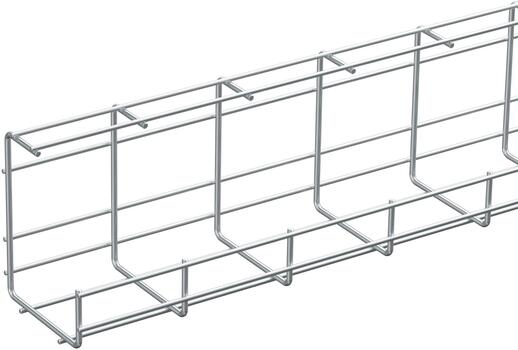

G-Mesh tray B120x5/150 2.5m AISI316L
Commercialized
Item number
1149339
Local code:
*
GTIN:
7332227013390
Description:
G-Mesh tray B120x5/150 2.5m AISI316L
Wibe Group. 1149339 - Defem - mesh tray - G-shape - 120/150 - wire dia 4/5 mm - 2.5 m - stainless steel AISI316L
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
G-Mesh tray B120x5/150 2.5m AISI316L
Medium description
Defem - mesh tray G-shape - 120/150 - wire dia 4/5 mm - 2.5 m - stainless steel AISI316L
Length
2500 mm
Width
120 mm
Height
150 mm
Material
Stainless steel
Material type or surface treatment
AISI316L
Environmental corrosion class
CX
Base
Activity
Cable support systems
Product family
Mesh trays
Brand
Defem
Range
Defem
GTIN
7332227013390
ETIM (EC000853-Mesh cable tray)
Profile shape (EF005179)
G-shape
Height (EF000040)
150 mm
Width (EF000008)
120 mm
Wire diameter (EF004603)
4 mm
Length (EF001438)
2500 mm
Useful cross section (EF005140)
23495000 mm²
Model (EF000010)
Without connector
Screwless connector (EF008184)
No
Integrated partition (EF004799)
None
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Stainless steel
Material quality (EF001257)
Stainless steel 316 L (1.4404)
Surface protection (EF000139)
EV020086
Colour (EF000007)
*
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Weight (EF000167)
1.4 kg/m
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
3.57 kg
Length pack 1
2503 mm
Width pack 1
119 mm
Height pack 1
155 mm
Customs code
73089098
Net weight
3.57 kg
Country of origin
SE
Certification
ETIM class
EC000853
Environmental
GWP Total A1-A3
20.8488 kgCO2e
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
