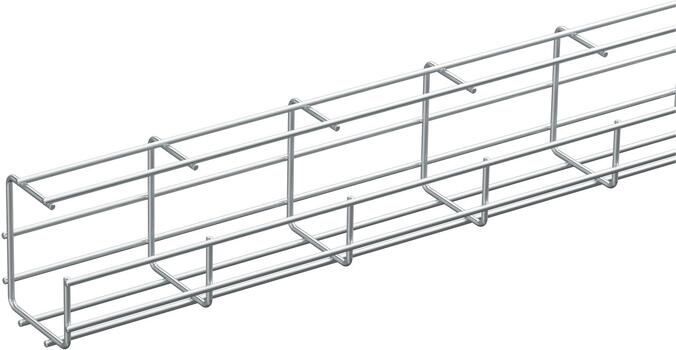

G-Mesh tray B75x4/95 2.5m HDG
Commercialized
Item number
1149238
Local code:
*
GTIN:
7332227012386
Description:
G-Mesh tray B75x4/95 2.5m HDG
Wibe Group. 1149238 - Defem - mesh tray - G-shape - 75/95 - wire dia 4 mm - 2.5 m - steel hot-dip galvanized
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
G-Mesh tray B75x4/95 2.5m HDG
Medium description
Defem - mesh tray G-shape - 75/95 - wire dia 4 mm - 2.5 m - steel hot-dip galvanized
Length
2500 mm
Width
75 mm
Height
95 mm
Material
Steel
Material type or surface treatment
Hot-dip galvanized
Environmental corrosion class
C4
Base
Activity
Cable support systems
Product family
Mesh trays
Brand
Defem
Range
Defem
GTIN
7332227012386
ETIM (EC000853-Mesh cable tray)
Profile shape (EF005179)
G-shape
Height (EF000040)
95 mm
Width (EF000008)
75 mm
Wire diameter (EF004603)
4 mm
Length (EF001438)
2500 mm
Useful cross section (EF005140)
3025 mm²
Model (EF000010)
Without connector
Screwless connector (EF008184)
No
Integrated partition (EF004799)
None
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Material quality (EF001257)
Other
Surface protection (EF000139)
Hot-dip galvanized
Colour (EF000007)
*
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Weight (EF000167)
1.03 kg/m
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
2.58 kg
Length pack 1
2500 mm
Width pack 1
77 mm
Height pack 1
97 mm
Customs code
73089098
Net weight
2.58 kg
Country of origin
SE
Certification
ETIM class
EC000853
Environmental
GWP Total A1-A3
7.1982 kgCO2e
Product downloads
Environmental Documents
Downloads
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
