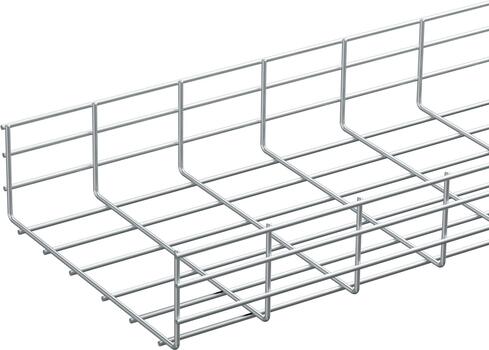

Mesh tray 320/110x5 2.5m AISI316L

/storage/91350D5CA0CCA08FF1B62C65BDBDD57050CBE8D1EB23886434FF9FFE9C0878AE/31ed0032b8b4499491de3071f3f02283/jpg/media/5114fe6c525f44a6a7d3ba40731fa5e1/1149306.jpg
Commercialized

Item number

1149306

Local code: *
GTIN: 7332227013062
Description: Mesh tray 320/110x5 2.5m AISI316L

Corrosion class

C5-M
Wibe Group. 1149306 - Defem - mesh tray - U-shape - 320/110 - wire dia 5 mm - 2.5 m - stainless steel AISI316L

More Info

Properties

Status product
Product status
Commercialized
Commercial and Web
Short description
Mesh tray 320/110x5 2.5m AISI316L
Medium description
Defem - mesh tray U-shape - 320/110 - wire dia 5 mm - 2.5 m - stainless steel AISI316L
Length
2500 mm
Width
320 mm
Height
110 mm
Material
Stainless steel
Material type or surface treatment
AISI316L
Corrosion class
C5-M
Base
Activity
Cable support systems
Product family
Mesh trays
Brand
Defem
Range
Defem
GTIN
7332227013062
ETIM (EC000853-Mesh cable tray)
Profile shape (EF005179)
U-shape
Height (EF000040)
110 mm
Width (EF000008)
320 mm
Wire diameter (EF004603)
5 mm
Length (EF001438)
2500 mm
Useful cross section (EF005140)
36000 mm²
Model (EF000010)
Without connector
Screwless connector (EF008184)
No
Integrated partition (EF004799)
None
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Stainless steel
Material quality (EF001257)
Stainless steel 316 L (1.4404)
Surface protection (EF000139)
EV020086
Colour (EF000007)
*
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
Type I
Weight (EF000167)
2.73 kg/m
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
7 kg
Length pack 1
2503 mm
Width pack 1
322 mm
Height pack 1
107 mm
Pack 4 type
Pallet
Quantity pack 4
42
Weight pack 4
330 kg
Length pack 4
2500 mm
Width pack 4
800 mm
Height pack 4
1040 mm
GTIN pack 4
77332227013061
Customs code
73089098
Net weight
7 kg
Country of origin
SE
Certification
ETIM class
EC000853
Environmental
GWP Total A1-A3
40.88 kgCO2e
