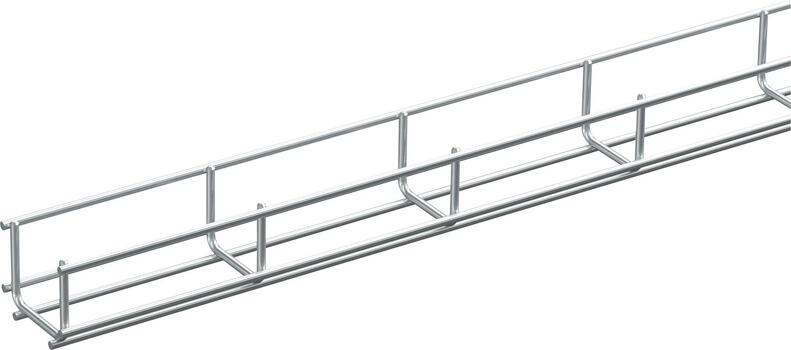

Mesh tray 53/45x4 2.5m AISI304

/storage/B2BACADFC26CD1F166D20CD7D47A97D6C144CDB397AB67682E7CEFC0B02E96E5/27c561e12b284ce1a1d36f3efdc6411c/jpg/media/fe97de6469134a61958fc0b6f9308f54/1149613.jpg
Commercialized

Item number

1149613

Local code: *
GTIN: 3606480523472
Description: Mesh tray 53/45x4 2.5m AISI304

Corrosion class

Wibe Group. 1149613 - Defem - mesh tray - U-shape - 53/45 - wire dia 4 mm - 2.5 m - stainless steel AISI304

Properties

Commercial and Web
Short description
Mesh tray 53/45x4 2.5m AISI304
Medium description
Defem - mesh tray U-shape - 53/45 - wire dia 4 mm - 2.5 m - stainless steel AISI304
Keyword
1149613, Mesh Trays|Wibe-Group
Length
2500
Width
53
Height
45
Material
Stainless steel
Material type or surface treatment
AISI304
Corrosion class
C5-I
Base
Activity
Cable support systems
Product family
Mesh trays
Brand
Defem
Range
Defem
GTIN
3606480523472
ETIM (EC000853-Mesh cable tray)
Profile shape (EF005179)
U-shape
Height (EF000040)
45 mm
Width (EF000008)
53 mm
Wire diameter (EF004603)
4 mm
Length (EF001438)
2500 mm
Useful cross section (EF005140)
3330000 mm²
Model (EF000010)
Without connector
Screwless connector (EF008184)
No
Integrated partition (EF004799)
None
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Stainless steel
Material quality (EF001257)
Stainless steel 304 (1.4301)
Surface protection (EF000139)
Other
Colour (EF000007)
*
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Weight (EF000167)
0.7 kg/m
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
1.78
Length pack 1
2503 mm
Width pack 1
52
Height pack 1
44
Pack 4 type
Pallet
Quantity pack 4
260
Weight pack 4
490
Length pack 4
2503
Width pack 4
800
Height pack 4
670
GTIN pack 4
73606480523471
Customs code
73089098
Country of origin
SE
Certification
ETIM class
EC000853
Status product
Product status
Commercialized

Item number

1149613
