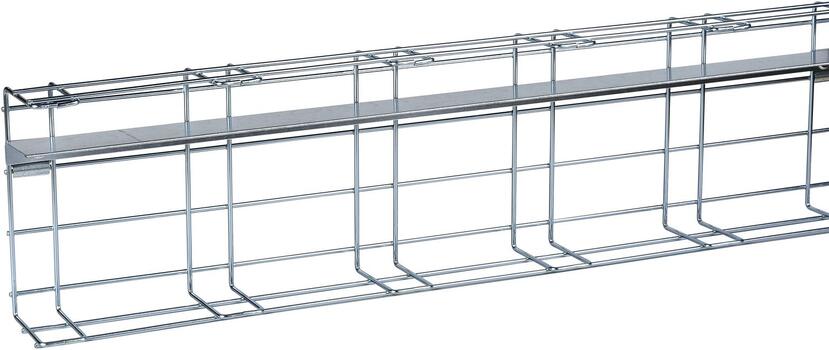

Mesh tray 1 divider 70x200 3m EZ

/storage/401DBA706766577AD5C6BF27B844FCFA488A53F032F82DD270AD3E84DC35722A/b90011feaddb441e9e0cc70f18d8265b/jpg/media/11587268c33d4942b91437df562fd195/CSU4521221.jpg
Commercialized

Item number

CSU4521221

Local code: *
GTIN: 8428031160098
Description: Mesh tray 1 divider 70x200 3m EZ

Corrosion class

Wibe Group. CSU4521221 - Stago - Performa - mesh tray - electro-zinc - 70 mm x 200 mm x 3000 mm

Properties

Commercial and Web
Short description
Mesh tray 1 divider 70x200 3m EZ
Medium description
Performa - mesh tray with one divider - 70 x 200 x 3000 mm - steel electro-zinc
Width
200 mm
Material
Steel
Material type or surface treatment
Electro-galvanized
Corrosion class
C1
Base
Activity
Cable support systems
Product family
Mesh trays
Brand
Stago
Range
Performa
GTIN
8428031160098
ETIM (EC000853-Mesh cable tray)
Profile shape (EF005179)
*
Height (EF000040)
* mm
Width (EF000008)
* mm
Wire diameter (EF004603)
4.9 mm
Length (EF001438)
3000 mm
Useful cross section (EF005140)
* mm²
Model (EF000010)
*
Screwless connector (EF008184)
*
Integrated partition (EF004799)
*
Wide span model (EF006397)
*
Suitable for circuit integrity (EF007806)
*
Material (EF002169)
Steel
Material quality (EF001257)
*
Surface protection (EF000139)
*
Colour (EF000007)
*
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Weight (EF000167)
* kg/m
Logistic
Customs code
7314500000
Country of origin
NL
Certification
ETIM class
EC000853
Status product
Product status
Commercialized
