TEX-C5M through bolt M10x60
Commercialized
Item number
IMT38025
Local code:
*
GTIN:
3606480214868
Description:

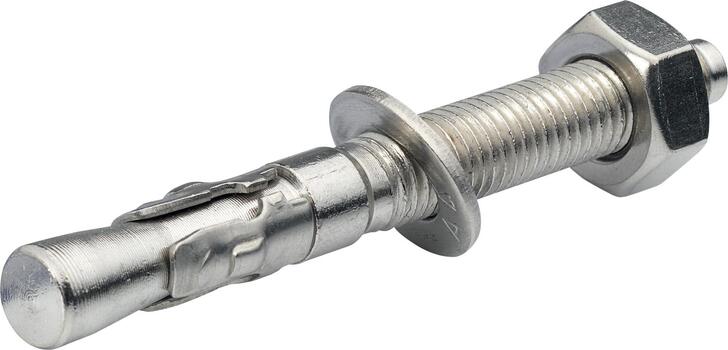

TEX-C5M through bolt M10x60
Wibe Group. IMT38025 - Wibe - TEX-C5M M10x60 through bolt - set of 50
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
TEX-C5M through bolt M10x60
Medium description
Wibe - TEX-C5M M10x60 through bolt - set of 50
Material
Stainless steel
Material type or surface treatment
AISI316L
Environmental corrosion class
CX
Base
Activity
Installation systems
Product family
Fixings
Brand
Wibe
Range
TEX
GTIN
3606480214868
ETIM (EC000048-Anchor bolt)
Bracing (EF006280)
Drop-in anchor
Anchor model (EF024648)
Bolt
Fastening provision (EF005644)
Nut
Screwing system (EF000013)
Outside hexagon
Material anchor (EF015711)
Stainless steel
Material quality anchor (EF015712)
Stainless steel 316 (V4A)
Surface protection anchor (EF015713)
Untreated
Material sleeve (EF001260)
Stainless steel
Material quality sleeve (EF015002)
Stainless steel 316 (V4A)
Surface protection sleeve (EF015714)
Untreated
With collar (EF015731)
No
Thread type (EF001758)
Metric
Thread size (metric) (EF003563)
10
Thread size (imperial) (EF003715)
*
Thread per inch (EF012132)
*
Thread length (EF000368)
13 mm
Length (EF001438)
60 mm
Sleeve length (EF000014)
* mm
Fastening by expander tool (EF015732)
No
Drill hole diameter (EF004562)
10 mm
Min. drill hole depth (EF000384)
57 mm
Push (EF015003)
No
Pre (EF015004)
No
Spaced installation (EF015005)
No
Effective anchorage depth (EF012339)
40 mm
Max. clamping thickness (EF015006)
7 mm
Type of concrete (EF010425)
Uncracked concrete
Suitable for hollow core slab (EF015716)
No
Wrench width (EF000177)
17 mm
Number of nuts (EF013909)
1
Number of washers (EF005585)
1
Inner diameter of eye (EF001085)
* mm
Fire resistant (EF025535)
No
Fire resistance class according to EN 13501 (EF025876)
*
ETA seismic rating (EF015715)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
.044 kg
Length pack 1
60 mm
Width pack 1
10 mm
Height pack 1
10 mm
Pack 2 type
Carton
Quantity pack 2
50
Weight pack 2
2.27 kg
Length pack 2
160 mm
Width pack 2
120 mm
Height pack 2
90 mm
Pack 3 type
Carton
Quantity pack 3
300
Weight pack 3
14 kg
Length pack 3
265 mm
Width pack 3
265 mm
Height pack 3
185 mm
Customs code
73181595
Net weight
.04 kg
Country of origin
CN
Certification
ETIM class
EC000048
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
