Wibe Cable Ladder Ranges
Find the right cable ladder system for your project
From lightweight and installation-friendly to ultra heavy-duty and high-load certified, Wibe offers a complete portfolio of cable ladders to meet every project requirement. Whether you need a lightweight ladder for fast indoor installations, a more versatile ladder for all-round use, or a reinforced ladder for long spans and demanding industrial environments – there’s a Wibe solution for every challenge.
Wibe cable ladder ranges

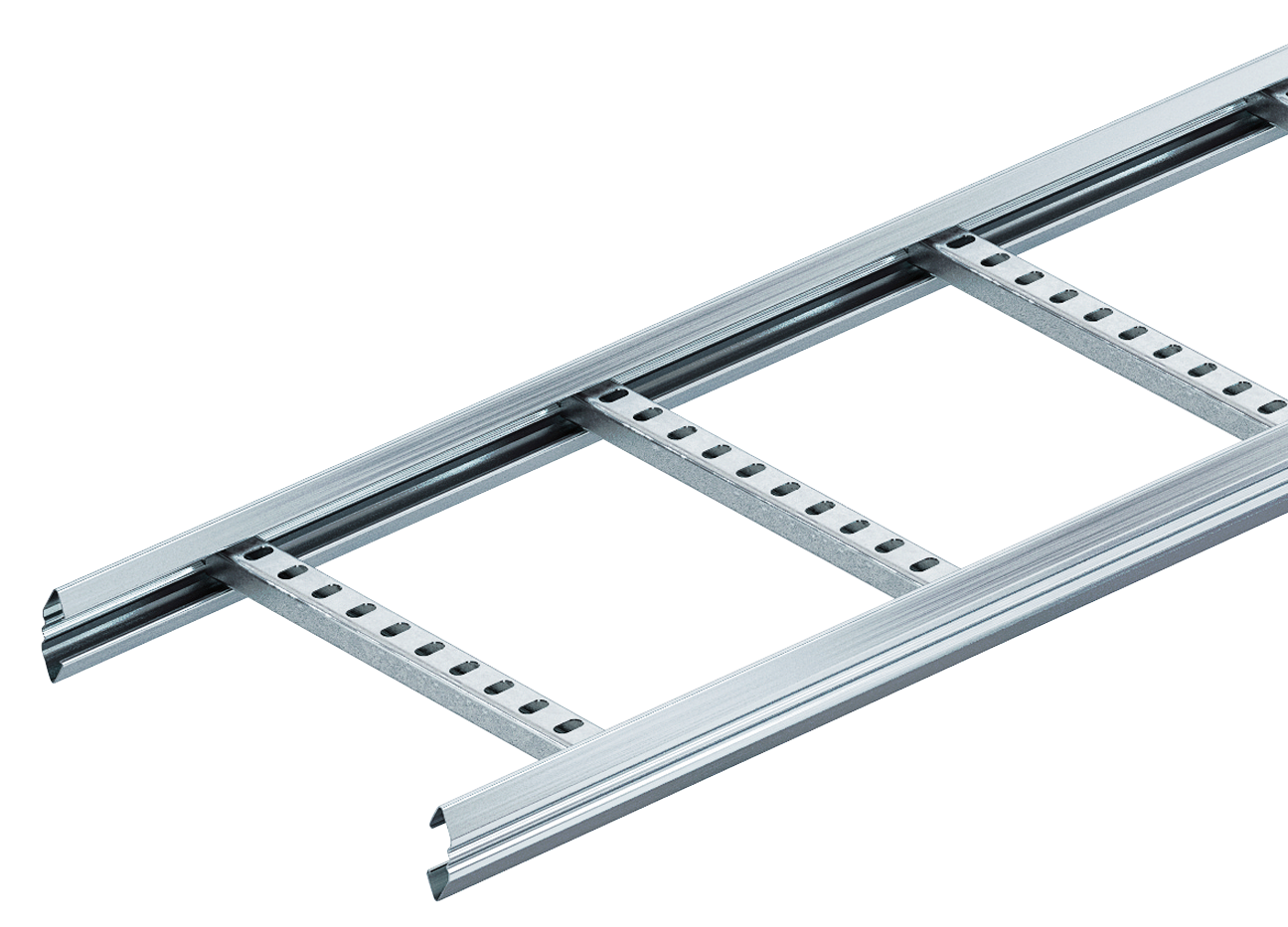

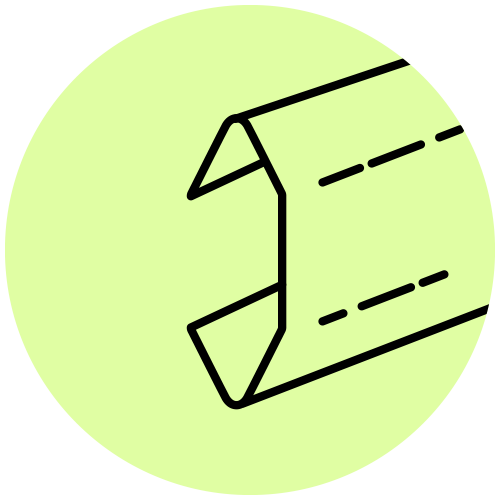

KHZSP
Lightweight and easy to install
When speed, simplicity and flexibility are key, KHZSP is the ideal choice. As our lightest cable ladder, it’s designed for effortless handling and quick installation – without compromising on durability.
Lengths: 3, 4 and 6 m · Widths: 200-600 mm
Safe Working Load (SWL) by span:
2 m: 145 kg/m
4 m: 23 kg/m
Why choose KHZSP?
- Light-weight and easy to install
- Time-saving click mounting with smart accessories and the CLX3 system
- Perforated rungs for easy cable fixation
- EPD available

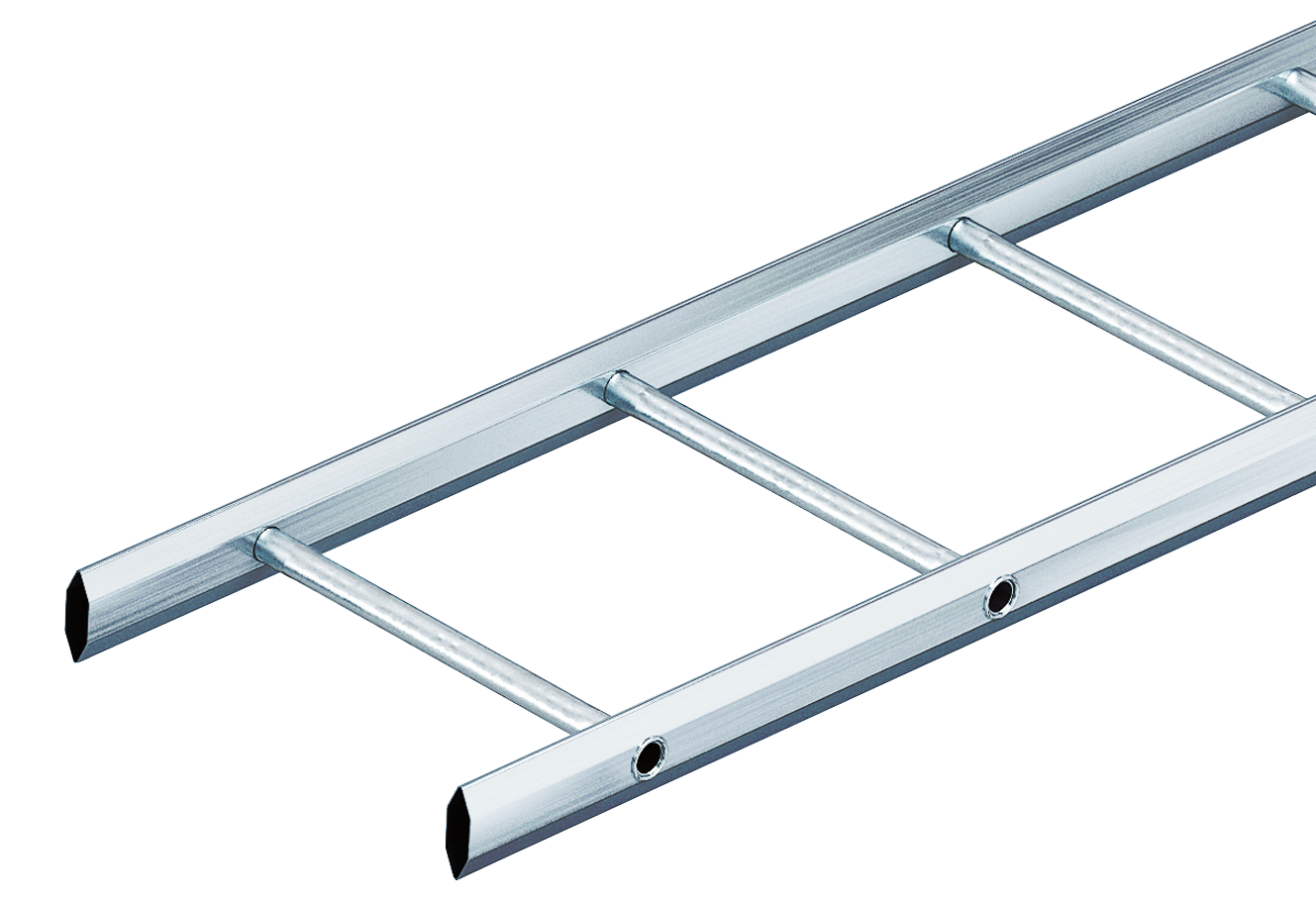

KHZ
All-round performance with strength and vibration resistance
The KHZ ladder features round, riveted rungs, which offer higher resistance to vibration compared to welded alternatives – a key reason why it’s preferred by customers in the wind power industry. A stainless steel AISI 316L (CX) version with closed side profiles is also available for hygienic applications, such as food and beverage production.
Lengths: 3 and 6 m · Widths: 150-600 mm
Safe Working Load (SWL) by span:
2 m: 242 kg/m
4 m: 53 kg/m
Why choose KHZ?
- High load capacity
- An all-round solution suitable for most projects
- Time-saving click mounting with smart accessories
- High vibration resistance
- Stainless steel model for hygienic applications
- EPD available

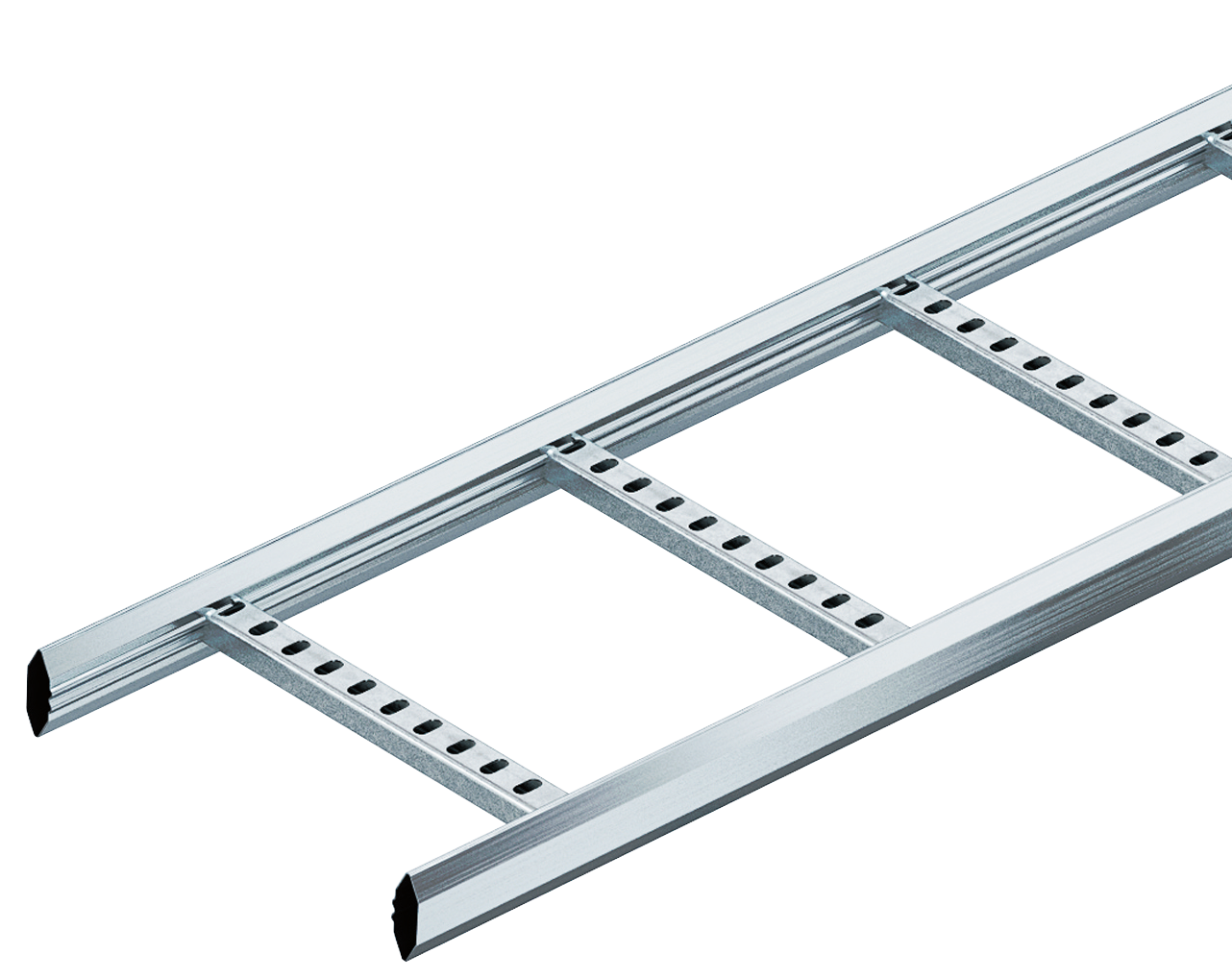

KHZP
All-round performance with perforated rungs for versatile use
The KHZP ladder is designed with C-shaped perforated rungs welded to the side profile, enabling flexible and secure cable placement. With a broad range of widths and surface treatments, it serves as a versatile, all-purpose solution for a wide variety of applications. The pre-galvanized KHZPS model is suitable for commercial buildings and similar projects.
Lengths: 3 and 6 m · Widths: 150-1000 mm
Safe Working Load (SWL) by span:
2 m: 242 kg/m (KHZPS: 190 kg/m)
4 m: 53 kg/m (KHZPS: 30 kg/m)
Why choose KHZP?
- High load capacity
- An all-round solution suitable for most projects
- Time-saving click mounting with smart accessories
- Perforated rungs for easy cable fixation
- E30-E90 certified fire-resistance (KHZPS)
- EPD available

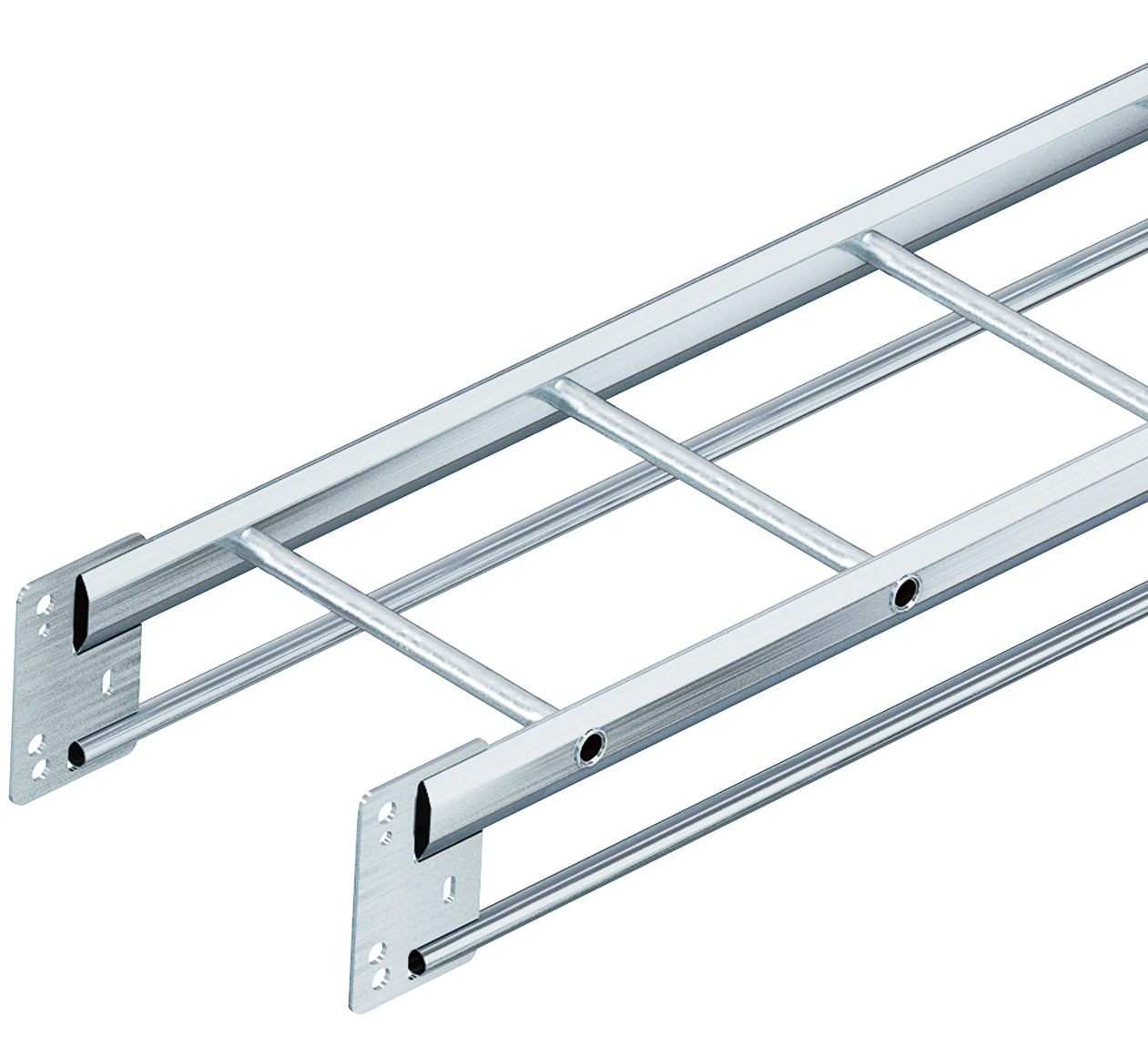

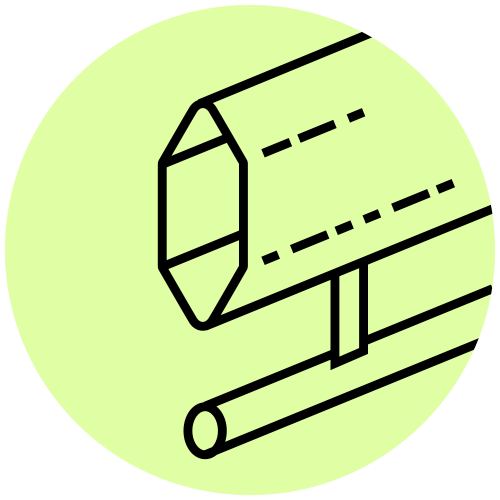

KHZV
Heavy duty cable ladder for long spans and demanding applications
A reinforced ladder with round rungs, ideal for long spans and demanding environments.
Lengths: 6 m · Widths: 200-600 mm
Safe Working Load (SWL) by span:
4 m: 150 kg/m
9 m: 30 kg/m
Why choose KHZV?
- High load capacity for long spans
- Heavy-duty system for demanding applications
- EPD available

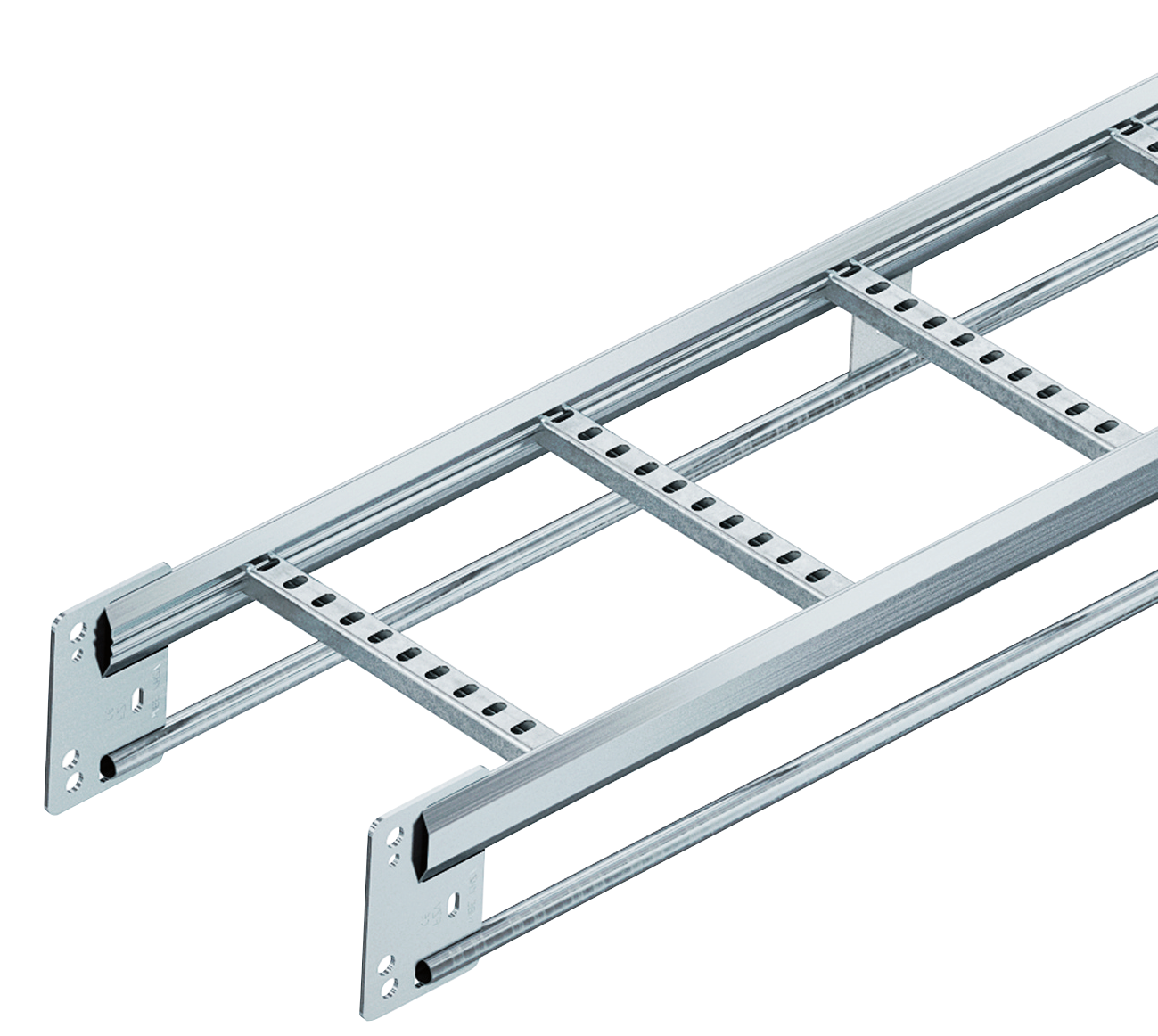

KHZPV
Heavy duty cable ladder for long spans and demanding applications
A heavy-duty ladder with perforated rungs, engineered for demanding industrial installations requiring long spans and secure cable placement.
Lengths: 6 m · Widths: 200-1000 mm
Safe Working Load (SWL) by span:
4 m: 150 kg/m
9 m: 30 kg/m
Why choose KHZPV?
- High load capacity for long spans
- Heavy-duty system for demanding applications
- Perforated rungs for easy cable fixation
- Robust bolted coupling
- EPD available

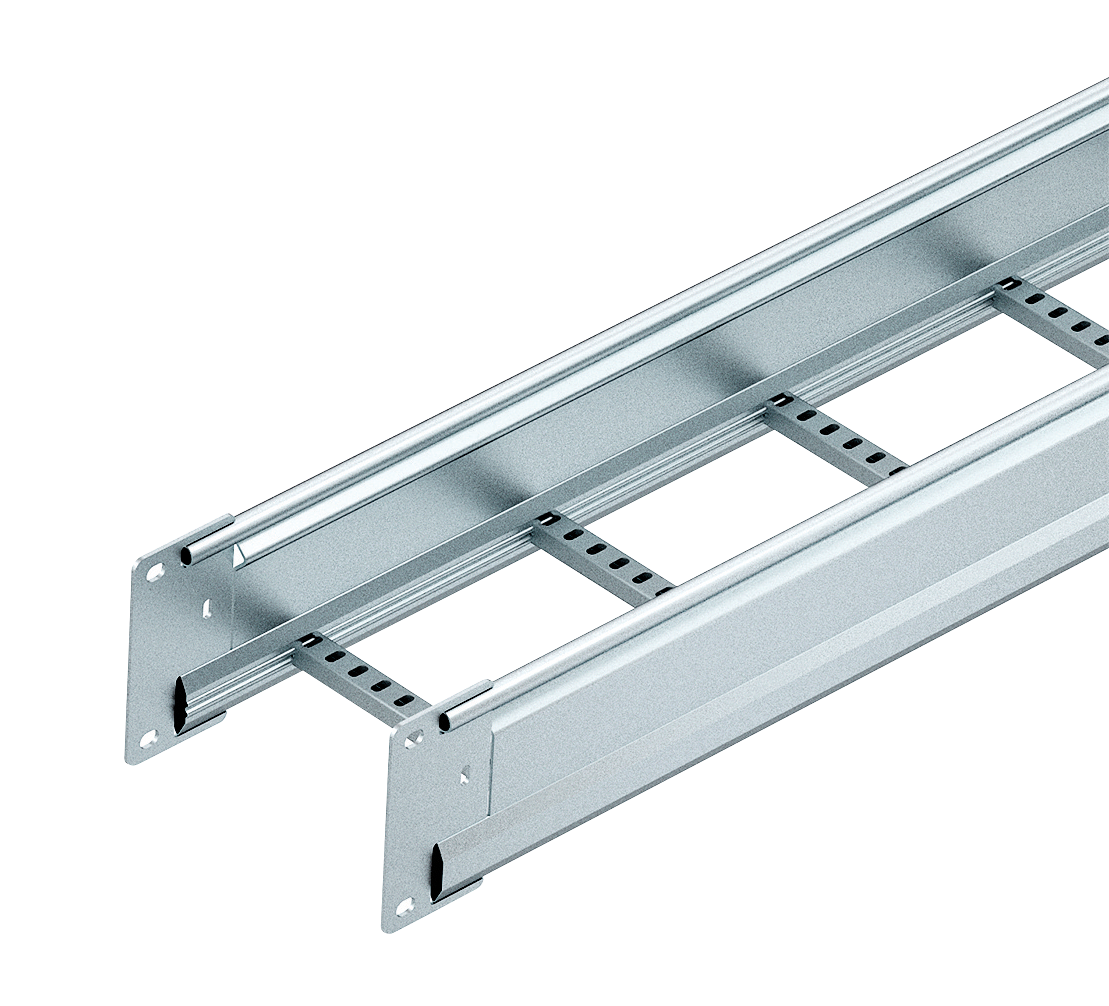

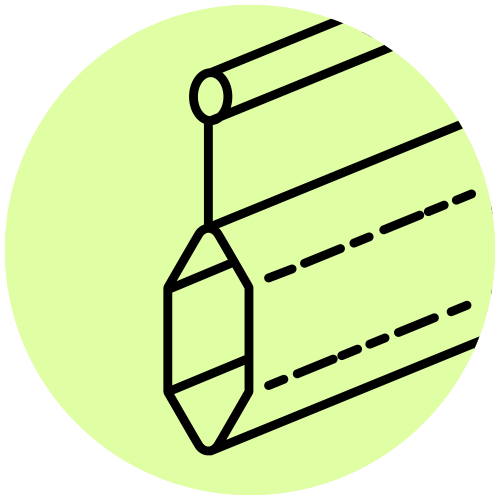

KHZP 20C
Ultra-heavy duty NEMA 20C classed reinforced and high-sided cable ladder
A high-sided cable ladder which is our most powerful model yet, designed for heavy loads and long spans, meeting NEMA VE 1 20C standards. High sidewalls and reinforced accessories ensure long-term durability.
Lengths: 6 m · Widths: 200-1000 mm
Safe Working Load (SWL) by span:
6 m: 132 kg/m
9 m: 80 kg/m
Why choose KHZP 20C?
- Very high load capacity for long spans
- Heavy-duty system for demanding applications
- EPD available
