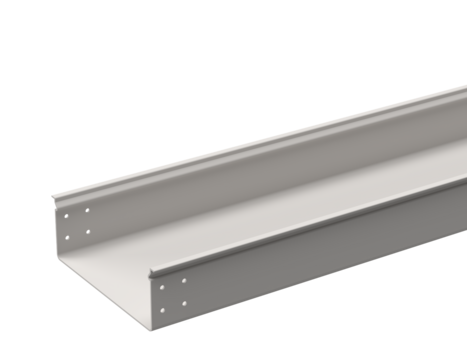

Solid tray/trough 300x110mm 6m PY1
Commercialized
Item number
GRP3001106MPY1
Local code:
*
GTIN:
7321678001308
Description:
Solid tray/trough 300x110mm 6m PY1
Wibe Group. GRP3001106MPY1 - Mita - Solid tray/trough 300x110 mm - Concrete C/1/10 - 6 m - GRP PY1
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Solid tray/trough 300x110mm 6m PY1
Medium description
Mita - Solid tray/trough 300x110 mm - Concrete C/1/10 - L=6 m - GRP PY1
Length
6000 mm
Width
300 mm
Height
110 mm
Material
GRP
Material type or surface treatment
PY1
Environmental corrosion class
CX
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Mita
Range
Cabsys
GTIN
7321678001308
ETIM (EC000047-Cable tray/wide span cable tray)
Height (EF000040)
* mm
Width (EF000008)
* mm
Material thickness (EF000386)
* mm
Length (EF001438)
* mm
Useful cross section (EF005140)
* mm²
With cover (EF007965)
*
Side wall perforation (EF001122)
*
Mounting perforation in bottom (EF004545)
*
NATO (EF006059)
*
Model (EF000010)
*
Wide span model (EF006397)
*
Suitable for circuit integrity (EF007806)
*
Material (EF002169)
*
Stainless steel, pickled (EF006388)
*
Material quality (EF001257)
*
Surface protection (EF000139)
*
Colour (EF000007)
*
RAL (EF000116)
*
Weight (EF000167)
* kg/m
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
19 kg
Length pack 1
6000 mm
Width pack 1
300 mm
Height pack 1
110 mm
Customs code
39169010
Net weight
19 kg
Country of origin
GB
Certification
ETIM class
EC000047
BS 476 - Part 7 1997
Passed
BS EN 60695-2-12 2001
Passed
UL94 V0
Passed
UL94 5VA
Passed
Product downloads
Environmental Documents
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
