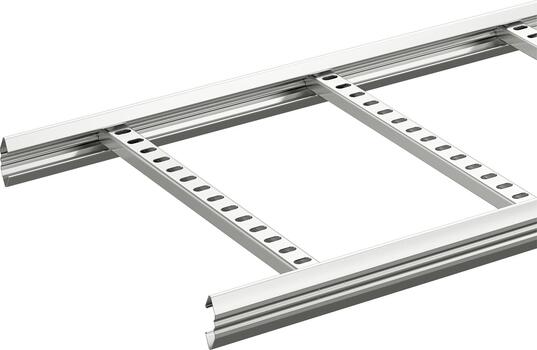

Cable ladder KHZSPZ+ -400 4m Z+
Cable ladder KHZSPZ+ -400 4m Z+
Table of contents
/storage/BC4A6BAE623A502291A54AA1742B36C96857C24217487CF3083BEFCE64F244D2/2b109303559443a1bde1e16b1c03c760/jpg/media/e3b59faa078244359a754db2ef9a3407/CSU795124.jpg
Commercialized
Item number
CSU795124
Local code:
*
GTIN:
3606480692840
Description:
Cable ladder KHZSPZ+ -400 4m Z+
Corrosion class
Wibe Group. CSU795124 - Wibe - cable ladder - KHZSPZ+ - 400 - open side profiles and perforated rungs - 4 m - steel Zinc+
More Info
Contact seller
Contact support
Properties
Commercial and Web
Short description
Cable ladder KHZSPZ+ -400 4m Z+
Medium description
Wibe - cable ladder - KHZSPZ+ - 400 - open side profiles and perforated rungs - 4 m - steel Zinc+
Length
4000
Width
400
Height
55
Material
Steel
Material type or surface treatment
Zinc+
Corrosion class
C4
Base
Activity
Cable support systems
Product family
Cable ladders
Brand
Wibe
Range
KHZSPZ+
GTIN
3606480692840
ETIM (EC000854-Cable ladder/wide span cable ladder)
Type of side joist (EF007666)
Profile (open)
Side wall perforation (EF001122)
No
Type of rung (EF001060)
Perforated profile
Fixation rung (EF008307)
Welded
Height (EF000040)
55 mm
Width (EF000008)
400 mm
Length (EF001438)
4000 mm
Useful cross section (EF005140)
11000 mm²
Rung centre spacing (EF008185)
250 mm
Wide span model (EF006397)
No
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Material quality (EF001257)
*
Surface protection (EF000139)
Other
Colour (EF000007)
*
RAL (EF000116)
*
Max. safe working load according to IEC 61537 (EF016305)
* N/m
Span between supports according to IEC 61537 (EF015363)
* mm
Load test type according to IEC 61537 (EF015362)
*
Weight (EF000167)
2.37 kg/m
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
8.54
Length pack 1
4000 mm
Width pack 1
398
Height pack 1
55
GTIN pack 1
3606480692840
Pack 4 type
Pallet
Quantity pack 4
30
Weight pack 4
256.2
Length pack 4
4000
Width pack 4
830
Height pack 4
570
GTIN pack 4
73606480692849
Customs code
73089059
Country of origin
SE
Certification
ETIM class
EC000854
Status product
Product status
Commercialized
Product downloads
Environmental Documents
CSU795124_reach.pdf
pdf 77 kb
CSU795124_rohs.pdf
pdf 76 kb
