Internal joint (Unilock) 60 PG
Commercialized
Item number
CSU08010109
Local code:
*
GTIN:
8712186117343
Description:
Internal joint (Unilock) 60 PG

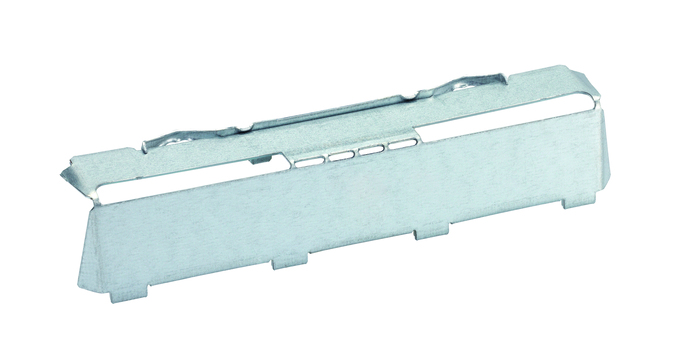

Wibe Group. CSU08010109 - Stago - Side Joint Unilock - 60x174 screwless - steel - pre-galvanized
Properties
Status product
Product status
Commercialized
Commercial and Web
Short description
Internal joint (Unilock) 60 PG
Medium description
Stago - Side Joint Unilock - 60x174 screwless - steel - pre-galvanized
Material
Steel
Material type or surface treatment
Pre-galvanized
Environmental corrosion class
C2
Base
Activity
Cable support systems
Product family
Cable trays
Brand
Stago
GTIN
8712186117343
ETIM (EC002413-Connector for cable support system)
Model (EF000010)
Longitudinal joint
Hinged joint horizontal (EF006392)
No
Hinged joint vertical (EF006393)
No
Type of connection (EF000064)
Screw less connector
Suitable for wire mesh tray (EF005163)
No
Suitable for cable ladder (EF005165)
No
Suitable for cable tray (EF005166)
Yes
Suitable for cable management system width (EF008339)
70-600 mm
Suitable for cable management system height (EF006391)
60 mm
Suitable for mesh cable tray filament (EF005164)
60-60 mm
Length (EF001438)
* mm
Suitable for circuit integrity (EF007806)
No
Material (EF002169)
Steel
Stainless steel, pickled (EF006388)
No
Material quality (EF001257)
Other
Surface protection (EF000139)
Continuously galvanized
Colour (EF000007)
*
RAL (EF000116)
*
Logistic
Pack 1 type
Each
Quantity pack 1
1
Weight pack 1
0.082 kg
Length pack 1
175 mm
Width pack 1
55 mm
Height pack 1
21 mm
Customs code
7308909800
Net weight
0.08 kg
Country of origin
NL
Certification
ETIM class
EC002413
Environmental
GWP Total A1-A3
0.2 kgCO2e
