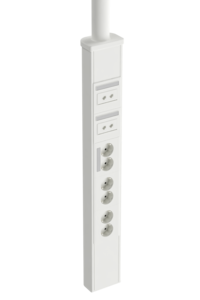

Pole FS 1s 2,1m 6SO 4RJ45 fl s wh R9003
Pre-commercialized
Item number
STA520228
Local code:
*
GTIN:
7321679005657
Description:
Pole FS 1s 2,1m 6SO 4RJ45 fl s wh R9003
Properties
Status product
Product status
Pre-commercialized
Commercial and Web
Colour
White RAL9003
Short description
Pole FS 1s 2,1m 6SO 4RJ45 fl s wh R9003
Medium description
Stago FSP Free Standing Pole 1 side 2,1m 3x2SO 2x2RJ45 flat shielded cat6a S/FTP Keystone white RAL9003
Length
2300 mm
Width
103 mm
Height
66 mm
Material
Aluminium
Material type or surface treatment
Powder coated
Base
Activity
Installation systems
Brand
Stago
Range
FSP
GTIN
7321679005657
ETIM (EC001941-Installation column)
Pillar shape (EF006309)
Other
Model (EF000010)
Single-sided
Prewired (EF008110)
Yes
Adjustable (EF000996)
Yes
Height levelling (EF007561)
* mm
Column height (EF005222)
2150 - 2150 mm
Column depth (EF012218)
66 mm
Column width (EF012461)
103 mm
Diameter (EF000551)
45 mm
Number of usable covers (EF002923)
1
Cover width (EF005146)
80 mm
Cover depth (EF012219)
* mm
Type of fastening (EF002442)
Mounting flange
Place variable (EF006286)
Yes
Suitable for ceiling mounting (EF021180)
Yes
Suitable for floor mounting (EF025108)
No
Cable entry (EF000537)
Above
Through (EF005690)
Yes
Material installation column (EF005413)
Aluminium
Material quality installation column (EF008136)
Other
Material installation column halogen free (EF008131)
Yes
Surface protection column (EF006400)
Coated
Colour column (EF007757)
White
RAL (EF008025)
9003
Material cover (EF005420)
Aluminium
Material quality cover (EF008137)
Other
Material cover halogen free (EF008132)
Yes
Cover surface (EF008007)
Coated
Colour cover (EF006405)
White
RAL (EF008026)
9003
Number of partitions (EF004446)
1
Useful cross section (EF005140)
6798 mm²
Logistic
Pack 1 type
Carton
Quantity pack 1
1
Weight pack 1
5 kg
Length pack 1
2550 mm
Width pack 1
140 mm
Height pack 1
150 mm
Pack 2 type
Pallet
Quantity pack 2
15
Weight pack 2
98 kg
Length pack 2
2550 mm
Width pack 2
800 mm
Height pack 2
594 mm
Customs code
85371098
Net weight
4.8 kg
Country of origin
SE
Certification
ETIM class
EC001941
Environmental
GWP Total A1-A3
24.36 kgCO2e
Product downloads
Environmental Documents
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
