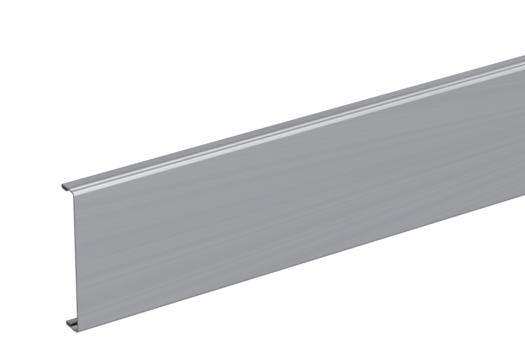

Front cover F80 steel 1.5m galv

Commercialized

Item number

INS5596005

Local code: *

GTIN: 7315880097983

Description: Front cover F80 steel 1.5m unpainted

Front cover F80 - L=1.5m - steel - unpainted

Data Sheet

Product status

Commercialized

Short description

Front cover F80 steel 1.5m unpainted

Medium description

Front cover F80 - L=1.5m - steel - unpainted

Length

1500 mm

Width

80 mm

Height

13 mm

Material

Steel

Material type or surface treatment

Pre-galvanized

Colour

Zinc

Activity

Installation systems

Product family

Trunking accessories

Brand

Stago

Range

WGX

GTIN

7315880097983

Width (EF000008)

80 mm

Length (EF001438)

1500 mm

Model (EF000010)

Plain

Mounting method cover (EF002922)

Inner lying

Mounting of cover (EF023522)

Snap on

Tamperproof fixing (EF015550)

Material (EF002169)

Steel

Material quality (EF001257)

Halogen free (EF000025)

Yes

Anti (EF023790)

Surface protection (EF000139)

Continuously galvanized

Colour (EF000007)

RAL (EF000116)

With protective foil (EF005266)

Operating temperature (EF001742)

-20 - 60 °C

Pack 1 type

Bag

Quantity pack 1

Weight pack 1

1.367 kg

Length pack 1

1500 mm

Width pack 1

80 mm

Height pack 1

12 mm

Customs code

73089098

Net weight

1.03 kg

Country of origin

ETIM class

EC000023

GWP Total A1-A3

5.09 kgCO2e

Manuals

WG_Stago_MountingInstructions_SteelTrunking_ALL_31-08-2023.pdf pdf 2008 kb

Environmental Documents

Item number

INS5596005

Local code: *

GTIN: 7315880097983

Description: Front cover F80 steel 1.5m unpainted

Data Sheet

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
