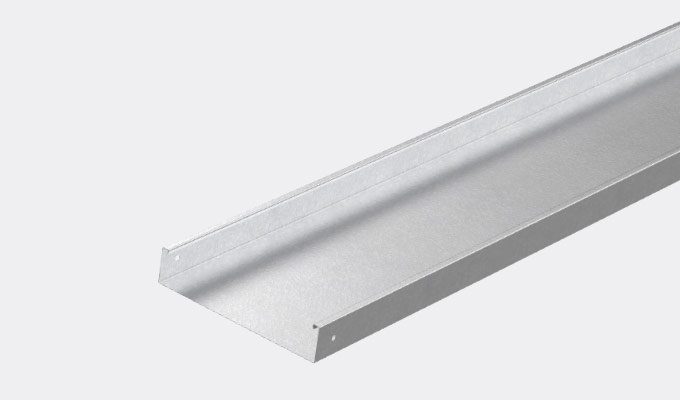

W1

Unperforated tray for dry indoor cable runs

W1 cable tray is the best choice for exposed installations where a clean, streamlined appearance is desired. It is available unpainted, or with a black or white finish, and can also be ordered in any custom colour. Combine it with the CLX3 support system for fast and efficient installation.

Length: 2 and 3 m · Height: 40 and 60 mm · Width: 70-600 mm

Safe Working Load (SWL) for 2m span:

H: 40 W: 70-200: 40 kg/m
H: 40 W: 300-400: 100 kg/m
H: 40 W: 500-600: 130 kg/m
H: 60 W: 50-200: 80 kg/m
H: 60 W: 300-400: 130 kg/m
H: 60 W: 500-600: 160 kg/m

Why choose W1?

• Closed design
• Available in unpainted steel, white and black lacquer
• Can be ordered in any colour
• Time-saving click mounting with the CLX3 system
• EPD available

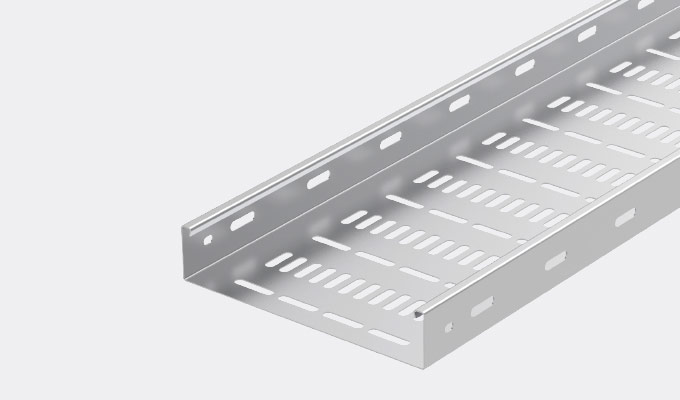

W3

Perforated tray for both indoor, outdoor and industry installations

W3 cable tray is mainly designed for industrial applications. Its perforated design enables convenient installation of accessories directly onto the tray.

Length: 3 m · Height: 40 and 60 mm · Width: 50-600 mm

Safe Working Load (SWL) for 2m span:

H: 40 W: 70-200: 55 kg/m
H: 40 W: 300-400: 80 kg/m
H: 40 W: 500-600: 100 kg/m
H: 60 W: 50-200: 80 kg/m
H: 60 W: 300-400: 120 kg/m

Why choose W3?

• Perforated design
• Flexible accessory mounting
• For demanding environments
• Time-saving click mounting with the CLX3 system
• EPD available

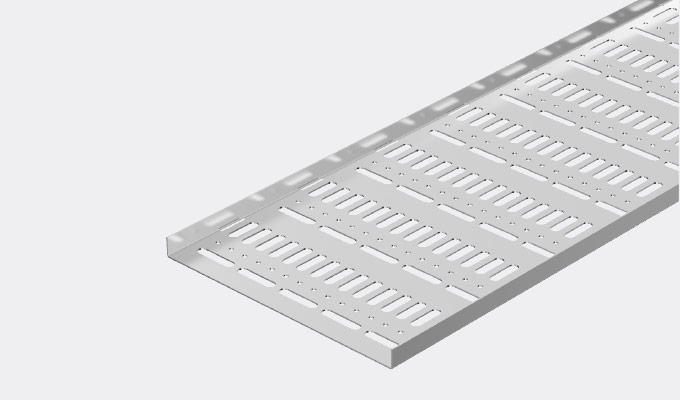

W4

Flexible installation tray for both horizontal and vertical installations

W4 installation tray can be mounted on a cantilever arm, wall bracket, or directly on a wall. Its low profile and low weight, combined with the flexible riser form piece, makes it ideal for applications such as elevator shafts, routing cables from overhead cable ladders or trays down to control cabinets, or installation on marine vessels. DNV approved for use in marine and offshore environments.

Lengths: 2 and 3 m · Height: 15 mm · Widths: 50-400 mm

Safe Working Load (SWL):

W4 is typically installed with closely spaced support distances, making Safe Working Load (SWL) ratings of limited relevance in most applications.

Why choose W4?

• High flexibility
• Approved for offshore and ship-yard use
• Holes for easy cable fixation
• EPD available

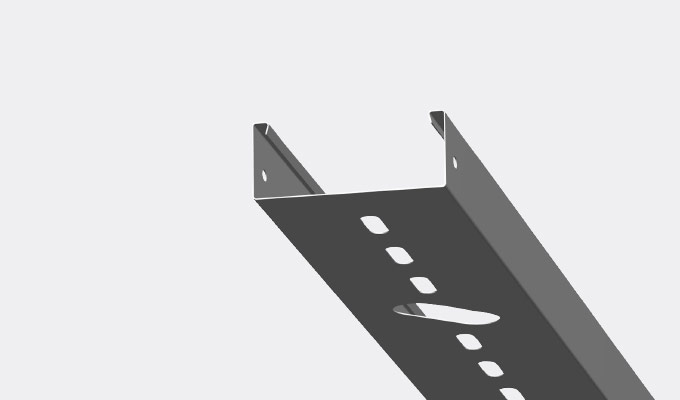

W70

Perforated lighting trunking

Cable tray with bottom perforation for indoor applications in dry environments. Oval holes (9 × 5.8 mm) located on the side flanges at each tray end allow for easy joint fastening. The perforation pattern in the tray base is designed for direct mounting of lighting fixtures, while oval openings at 500 mm intervals provide convenient access for guiding quick connectors into the tray.

Length: 3 m · Height: 40 mm · Width: 50-200 mm

Safe Working Load (SWL) for 1.5m span:

W: 50: 31 kg/m
W: 70-200: 23 kg/m

Safe Working Load (SWL) for 3m span:

W: 50: 14 kg/m
W: 70-200: 18 kg/m

Why choose W70?

• Easy installation of lighting fixtures
• Available in unpainted steel, white and black lacquer
• Can be ordered in any colour
• Time-saving click mounting with the CLX3 system
• EPD available
