Wibe Cable Trays

Strength for industry. Style for modern spaces.

Star EcoVadis Gold
Checkmark IEC / EN 61537
Checkmark Marine & Offshore certified
Checkmark 2-3 metre spans

From industrial performance to
architectural precision

For nearly 100 years, Wibe has delivered cable support solutions that combine reliability, durability, and design. Whether installed in a production facility, offshore platform, office, hotel, or public building, Wibe cable trays provide dependable cable management tailored to the environment.

Wibe cable trays are available across five material and surface-treatment lines – from pre-galvanized steel to marine-grade stainless steel – so every installation gets the level of corrosion protection it needs. Every tray is manufactured to EN 61537 / IEC 61537, and the zinc coating on our hot-dip galvanized ranges is applied at one of the most modern hot-dip galvanization plants in the Nordic countries, for a consistently high and even finish.

Where to use Wibe cable trays

Range
Commercial buildings
Commercial
buildings
Industry
Industry
Food & beverage
Food &
beverage
Marine and offshore
Marine and
offshore 		Corrosion
resistance
Unperforated cable tray
W1
Yes
 C2
Perforated cable tray
W3
Yes
Yes
 C2C4C5
Perforated installation tray
W4
Yes
Yes
Yes
 C2C4C5CX
Perforated lighting trunking
W70
Yes
Yes
 C2C4C5

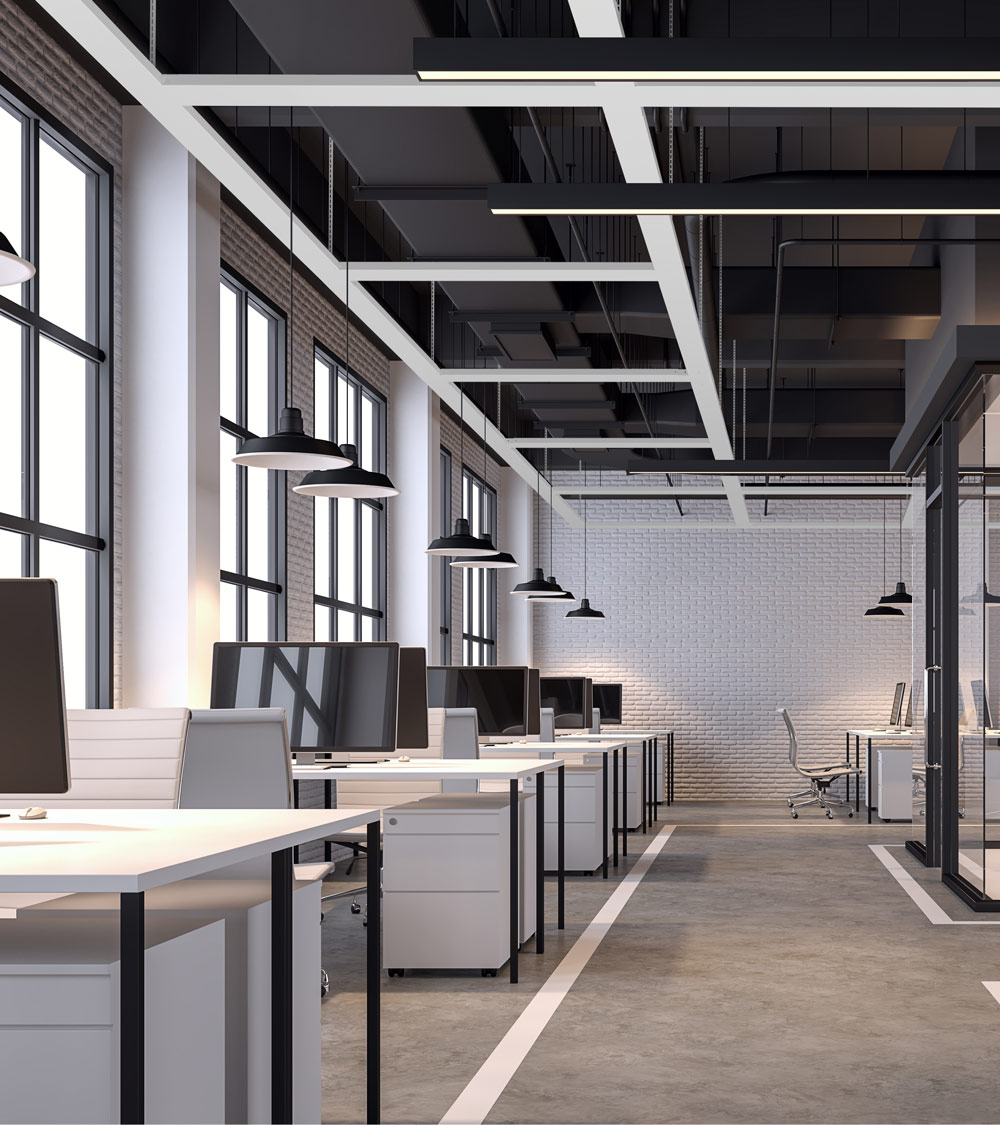

Wibe cable trays available in custom colours - office installation

Available in your desired colour/RAL code

Combining proven performance with architectural appeal, Wibe cable trays W1 and W70 with their accessories are also available in black and white painted finishes, and can be supplied in any custom colour. This makes them equally suited for visible installations in offices, hotels, retail spaces, and other environments where aesthetics are as important as functionality.

Download the Wibe Cable Trays Catalogue

Why choose Wibe cable trays?

Excellent corrosion resistance for all environments
Designed for demanding applications
Stylish lacquered trays for visible installations in offices and similar environments
Fast and tool-free installation using the CLX3 support system
DNV certified for offshore and ship-yard use
Tested and certified: EN/IEC 61537 tested · UL-listed, CE-marked
Works seamlessly with other Wibe and Defem systems

Explore the Wibe product ranges

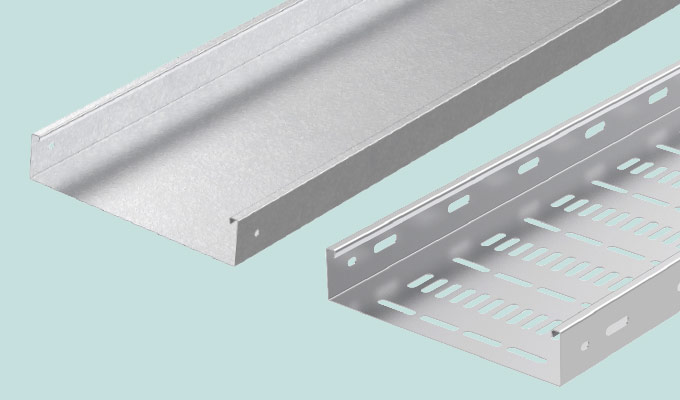

Wibe cable tray ranges

Wibe cable tray ranges

From stylish and installation-friendly to tough industry models and offshore certified, Wibe offers a broad portfolio of cable trays.

Explore the ranges

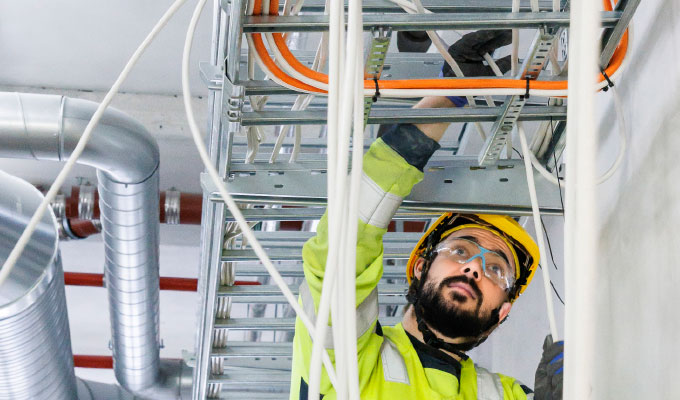

Wibe CLX3 fast click-to-install support system

Fast click-to-install support system

Optimized for commercial buildings, the Wibe CLX3 support system offers unmatched efficiency with up to 5 times faster installation compared to standard mounting.

Explore CLX3 support system

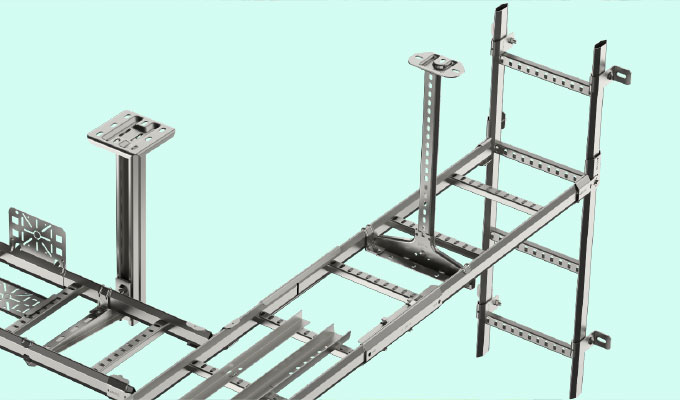

Wibe cable ladders

Wibe cable ladders

From lightweight and installation-friendly to ultra heavy-duty and high-load certified, Wibe offers a complete portfolio of cable ladders to meet every project requirement.

Explore Wibe cable ladders

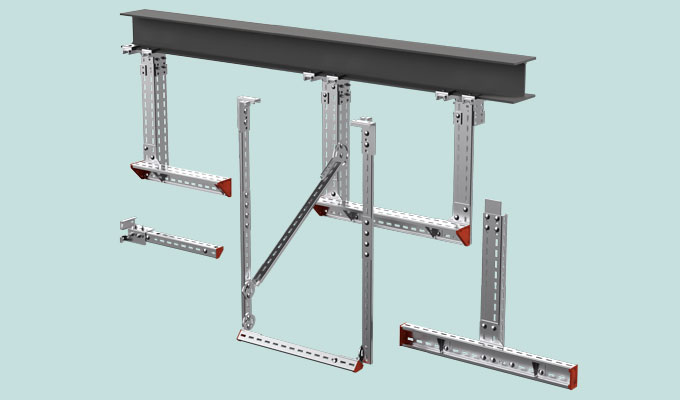

Wibe Flex support system

Wibe Flex support system

Originally developed for offshore energy projects, Wibe Flex is engineered to support EI&T, HVAC and small-bore piping, making it a truly versatile solution for demanding industrial environments.

Explore Wibe Flex support system

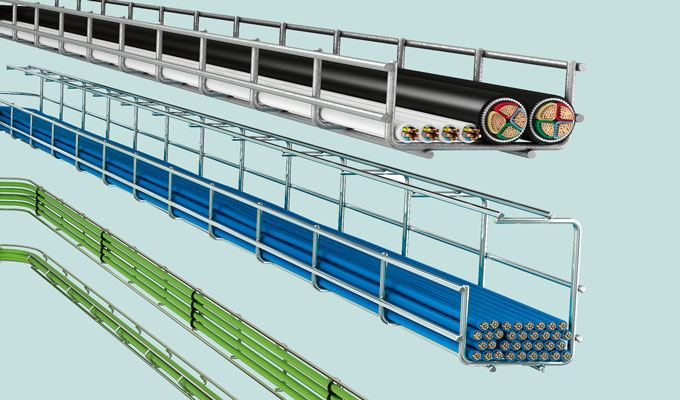

Defem mesh trays

Defem mesh trays

Combining Defem mesh trays with Wibe cable ladders optimizes your installation in regards of load capacity, flexibility and installation speed. Wibe offers a complete portfolio of cable ladders to meet every project requirement.

Explore Defem mesh trays
FAQ

Frequently Asked Questions

The right tray depends on the installation environment: W1 is an unperforated tray for visible installations where appearance matters. W3 is perforated, for industrial and general-purpose use. W4 is a flexible installation tray for vertical runs, elevator shafts and equipment connections. W70 is lighting trunking for mounting fixtures. All are available in multiple sizes and corrosion classes.
Different Wibe cable tray ranges are available in different material and surface-treatment options. W1 is offered in pre-galvanized steel, W3 in pre-galvanized and hot-dip galvanized steel, while W4 is available in pre-galvanized steel, hot-dip galvanized steel, Zinkpox® and stainless steel (AISI 316L). Together, the range covers corrosion classes from C1 to CX (according to SS-EN ISO 12944-2), ensuring the right level of protection for every environment.
Pre-galvanized W1 and W70 cable trays are available in black (RAL 9005, gloss level 25) and white (NCS S 0500-N, gloss level 30). Pre-galvanized W3 and W4 cable trays are also available in white.

For projects with specific design requirements, Wibe cable trays can be supplied in virtually any colour and gloss level. For more information, please contact us at support-INT@wibe-group.com.
Yes. Wibe cable trays are available in a range of materials and surface treatments designed for environments ranging from standard indoor applications to harsh industrial, marine and offshore conditions. Hot-dip galvanized, Zinc+, Zinkpox® and stainless steel options provide enhanced corrosion protection in demanding environments. The W4 range in stainless steel (AISI 316L) is DNV-approved for offshore and shipyard use.
Wibe cable trays are manufactured and tested in accordance with EN 61537 and IEC 61537 and are CE-marked under the Low Voltage Directive 2014/35/EU. The range is also UL-listed (UL E212854) for the US and Canadian markets and complies with NEMA VE 1 / CSA C22.2 requirements.

Wibe cable trays are produced under certified management systems for quality, environmental, occupational health and safety, and energy management, including ISO 9001, ISO 14001, ISO 45001 and ISO 50001. In addition, the W4 installation tray in stainless steel (AISI 316L) is DNV-approved for offshore and shipyard applications (Certificate No. TAE00000MN).
Yes. Decades of product development and field experience have resulted in a cable tray system that is quick and straightforward to install. Supported by a wide range of accessories and the CLX3 click-based suspension system, W1, W3 and W70 cable trays (40 mm height) enable fast installation with minimal tool use in C1 and C2 environments, helping contractors save time without compromising safety or quality.
Load capacity depends on tray type, width, support spacing and installation method – Safe Working Load (SWL) is calculated as breaking load divided by 1.7, per IEC 61537. Full load, deflection and span data is available in the technical documentation for each product. You’ll find load diagrams for all trays in the Wibe cable trays technical guide.
Wibe Group focuses on responsible sourcing, fair labour practices and reducing environmental impact throughout the supply chain. The company was awarded the EcoVadis Gold Rating both in 2025 and 2026, placing it among the top performers in its industry worldwide. EPDs are available for trays in all materials and surface treatments in the range, and they are also RoHS and REACh compliant, with proactive substitution of certain restricted materials and substances beyond regulatory minimums. You’ll find all documentation in our Eco Performance database.
Wibe cable trays are manufactured at our factory in Mora, Sweden. Wibe Group operates one of the most modern hot-dip galvanization plants in the Nordic countries, using a continuous process that guarantees consistently high, even zinc quality.
Wibe cable trays are designed for the safe and efficient routing of power, control and data cables across commercial buildings, industrial facilities, food and beverage plants, and marine/offshore installations – from aesthetic exposed installations in offices and hotels to demanding industrial applications.

More than cable trays

Smart tools and documentation

Smart tools and documentation

Clear documentation and practical digital tools support engineers, installers and project teams throughout the entire project lifecycle.

Try our installation support
Guide to corrosion classes

Guide to corrosion classes

Explore our comprehensive overview of the C1–CX environmental corrosion classes, including recommended surface treatments for each category.

View the guide
Sustainability

Proven sustainability excellence

EcoVadis Gold

Gold level sustainability
– built into every solution

Wibe Group was awarded the EcoVadis Gold Rating in 2026 with an improved score of 82, placing us in the 97th percentile globally and the top 3% of the “Manufacture of other fabricated metal products n.e.c.” industry worldwide. This reflects our ongoing commitment to active climate management and operational excellence.

See how we are redefining sustainability standards
CDP

CDP climate rating: B
(highest SME-level score)

A Climate Rating B places Wibe Group at the Management level of CDP’s scoring framework, the highest score obtainable by a Small or Medium‑sized Enterprise (“SME‑level”) like us.

Visit CDPs website
Eco Performance

Eco Performance – our sustainability database

Eco Performance is Wibe Group’s dedicated sustainability platform, providing easy access to e.g. EPDs, and REACH and RoHS documentation.

Search & download
environmental data

Talk to our experts

Our specialists are happy to support you with system selection, specifications and project advice.

Wibe cable tray expert

Download our catalogues

Download Wibe Cable Trays catalogue Download Wibe Cable Trays technical info Download Wibe Group Quick Guide View online catalogue
