PENDELBEVESTIGING 82 TV
Gecommercialiseerd
Artikelnummer
786768
E-Nummer:
*
GTIN:
7321677867684
Omschrijving:
PENDELBEVESTIGING 82 TV
Wibe Group. 786768 - Wibe - pendelbevestiging 82 - thermisch verzinkt
Eigenschappen
Status Product
Product status
Gecommercialiseerd
Product Omschrijving
Korte omschrijving
PENDELBEVESTIGING 82 TV
Medium omschrijving
WIBE - Pendelbevestiging 82 - Thermisch verzinkt
Materiaal
Staal
Materiaaltype of oppervlaktebehandeling
Thermisch verzinkt
Milieu corrosieklasse
C4
Basis
Activiteit
Kabeldraagsystemen
Productfamilie
Ophangsysteem
Merk
Wibe
GTIN
7321677867684
ETIM (EC000022-Console kabeldraagsysteem)

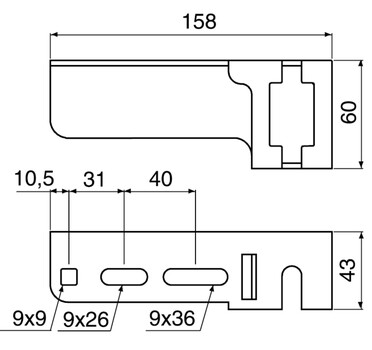

Lengte (EF001438)
* mm
Breedte (EF000008)
158 mm
Hoogte (EF000040)
60 mm
Geschikt voor kabeldraagsysteembreedte (EF008339)
150 - 1050 mm
Uitvoering (EF000010)
Wand-/plafondbeugel trapeziumprofiel
Hoek (EF005434)
0-0 ° °
Draaglast (EF002918)
* kN
Geschikt voor functiebehoud (EF007806)
Ja
Materiaal (EF002169)
Staal
Kwaliteitsklasse (EF001257)
*
Oppervlaktebescherming (EF000139)
Thermisch verzinkt (Hot-dip)
Kleur (EF000007)
*
RAL (EF000116)
*
Logistiek
Type verpakking 1
ST
Aantal verpakking 1
1
Gewicht verpakking 1
,36 kg
Lengte verpakking 1
158 mm
Breedte verpakking 1
43 mm
Hoogte verpakking 1
60 mm
Type verpakking 2
BAG
Aantal verpakking 2
10
Gewicht verpakking 2
4 kg
Lengte verpakking 2
200 mm
Breedte verpakking 2
100 mm
Hoogte verpakking 2
150 mm
Douane code
73089059
Netto gewicht
,36 kg
Land van productie
SE
Certificering
ETIM classificatie
EC000022
Duurzaamheid
GWP Total A1-A3
1,0044 kgCO2e
Product downloads
Duurzaamheidsdocumenten
Downloads
Duurzaamheidsverklaringen
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
