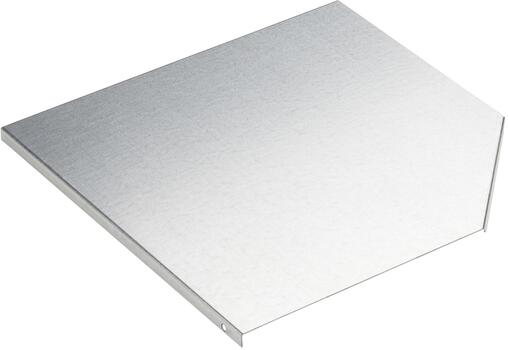

HOEKSTUKDEKSEL VLAK 400 D=1.0 TV

Gecommercialiseerd

Artikelnummer

CSU300640124

E-Nummer: *

GTIN: 8712186081347

Omschrijving: HOEKSTUKDEKSEL VLAK 400 D=1.0 TV

Wibe Group. CSU300640124 - Stago - Tv 184 - hoekstukdeksel - 400mm - 11x498x498mm - thermisch verzinkt

Productinformatieblad

Product status

Gecommercialiseerd

Korte omschrijving

HOEKSTUKDEKSEL VLAK 400 D=1.0 TV

Medium omschrijving

TV 184 - Hoekstukdeksel - 400mm - 11x498x498mm - Thermisch verzinkt

Breedte

400 mm

Materiaal

Staal

Materiaaltype of oppervlaktebehandeling

Thermisch verzinkt

Milieu corrosieklasse

Activiteit

Kabeldraagsystemen

Productfamilie

Kabelgoten

Merk

Stago

GTIN

8712186081347

Hoek (EF001218)

Richtingsverandering (EF005210)

Horizontaal

Breedte (EF000008)

400 mm

Lengte (EF001438)

* mm

Geschikt voor kabelgoot (EF005166)

Geschikt voor draadgoot (EF005163)

Nee

Geschikt voor kabelladder (EF005165)

Nee

Bevestigingswijze (EF002442)

Dekselklem

Scharnierend (EF001076)

Nee

Geschikt voor functiebehoud (EF007806)

Nee

Materiaal (EF002169)

Staal

Kwaliteitsklasse (EF001257)

Overig

Oppervlaktebescherming (EF000139)

Kleur (EF000007)

Overig

RAL (EF000116)

Gewicht verpakking 1

2,286 kg

Lengte verpakking 1

497 mm

Breedte verpakking 1

497 mm

Hoogte verpakking 1

10 mm

Douane code

7308909800

Netto gewicht

2,29 kg

Land van productie

ETIM classificatie

EC002402

Duurzaamheidsdocumenten

Artikelnummer

CSU300640124

E-Nummer: *

GTIN: 8712186081347

Omschrijving: HOEKSTUKDEKSEL VLAK 400 D=1.0 TV

Productinformatieblad

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
