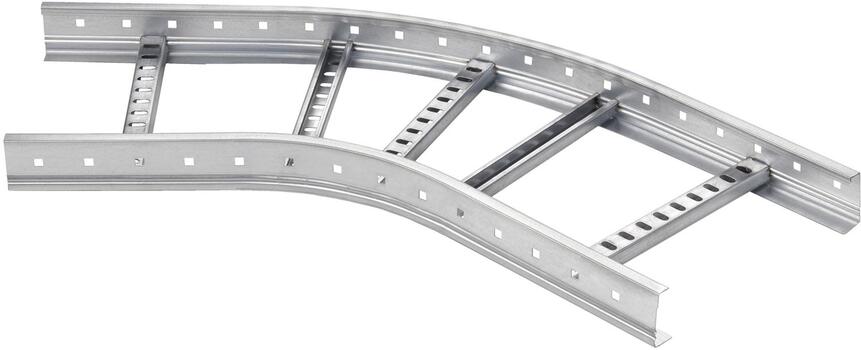

BOCHT 45 H19100-600 SV
Gecommercialiseerd
Artikelnummer
CSU737910
E-Nummer:
*
GTIN:
7321677379101
Omschrijving:
BOCHT 45 H19100-600 SV
Wibe Group. CSU737910 - Stago - Lb 4000 - bochtstuk - 45° - sz h19100/200 - 100x1150x1150mm - sendzimir verzinkt
Eigenschappen
Status Product
Product status
Gecommercialiseerd
Product Omschrijving
Korte omschrijving
BOCHT 45 H19100-600 SV
Medium omschrijving
LB 4000 - Bochtstuk - 45° - SZ H19100/200 - 100x1150x1150mm - Sendzimir verzinkt
Materiaal
Staal
Materiaaltype of oppervlaktebehandeling
Sendzimir verzinkt
Milieu corrosieklasse
C2
Basis
Activiteit
Kabeldraagsystemen
Productfamilie
Ladderbanen
Merk
Stago
GTIN
7321677379101
ETIM (EC001535-Bocht/hoekstuk kabelladder)
Richtingsverandering (EF005210)
Horizontaal
Uitvoering zijligger (EF007666)
Profiel (open vorm)
Zijperforatie (EF001122)
Ja
Uitvoeringsvorm sport (EF001060)
Profiel geperforeerd
Hoek (EF001218)
45°
Bochtuitvoering (EF020423)
Segmentbocht
Scharnierend (EF001076)
Nee
Kabelladderhoogte (EF004818)
100 mm
Kabelladderbreedte (EF004817)
600 mm
Uitvoering (EF000010)
Zonder verbinder
Binnenstraal (EF004793)
300 mm
Uitvoering voor grote overspanningen (EF006397)
*
Geschikt voor functiebehoud (EF007806)
Nee
Materiaal (EF002169)
Staal
Kwaliteitsklasse (EF001257)
*
Oppervlaktebescherming (EF000139)
Bandverzinkt (sendzimir verzinkt)
Kleur (EF000007)
*
RAL (EF000116)
*
Logistiek
Type verpakking 1
ST
Aantal verpakking 1
1
Gewicht verpakking 1
4,405 kg
Lengte verpakking 1
1061 mm
Breedte verpakking 1
865 mm
Hoogte verpakking 1
100 mm
Douane code
7308909800
Netto gewicht
4,41 kg
Land van productie
NL
Certificering
ETIM classificatie
EC001535
Duurzaamheid
GWP Total A1-A3
10,88 kgCO2e
Product downloads
Duurzaamheidsdocumenten
Downloads
Duurzaamheidsverklaringen
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
