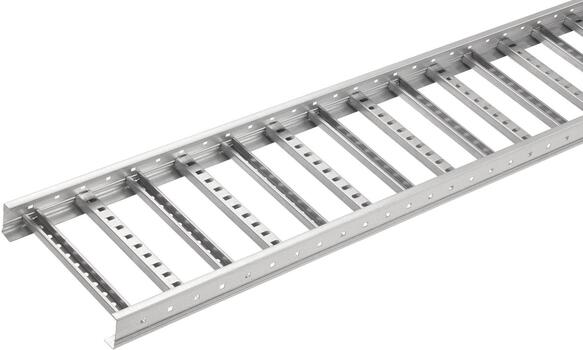

WHS 60x400 SA100 L=3m SV
Gecommercialiseerd
Artikelnummer
CSU737758
E-Nummer:
*
GTIN:
7321677377589
Omschrijving:
WHS 60x400 SA100 L=3m SV
Wibe Group. CSU737758 - Stago - lb4000 - ladderbaan - whs - 60x400mm - l=3m - 1mm - sportafstand 100mm - sendzimir verzinkt
Eigenschappen
Status Product
Product status
Gecommercialiseerd
Product Omschrijving
Korte omschrijving
WHS 60x400 SA100 L=3m SV
Medium omschrijving
Stago - LB4000 - Ladderbaan - WHS - 60x400mm - L=3m - 1mm - Sportafstand 100mm - Sendzimir verzinkt
Lengte
3000 mm
Breedte
400 mm
Hoogte
60 mm
Materiaal
Staal
Materiaaltype of oppervlaktebehandeling
Sendzimir verzinkt
Milieu corrosieklasse
C2
Basis
Activiteit
Kabeldraagsystemen
Productfamilie
Ladderbanen
Merk
Stago
Serie
LB4000
GTIN
7321677377589
ETIM (EC000854-Kabelladder)
Uitvoering zijligger (EF007666)
Profiel (open vorm)
Zijperforatie (EF001122)
Ja
Uitvoeringsvorm sport (EF001060)
Profiel geperforeerd
Bevestiging sport (EF008307)
Gelast
Hoogte (EF000040)
60 mm
Breedte (EF000008)
400 mm
Lengte (EF001438)
3000 mm
Nuttige doorsnede (EF005140)
15600 mm²
Sportafstand hart/hart (EF008185)
100 mm
Uitvoering voor grote overspanningen (EF006397)
Nee
Geschikt voor functiebehoud (EF007806)
Nee
Materiaal (EF002169)
Staal
Kwaliteitsklasse (EF001257)
*
Oppervlaktebescherming (EF000139)
Bandverzinkt (sendzimir verzinkt)
Kleur (EF000007)
*
RAL (EF000116)
*
Max. veilige werkbelasting volgens IEC 61537 (EF016305)
* N/m
Overspanning tussen steunen volgens IEC 61537 (EF015363)
* mm
Belastingstesttype volgens IEC 61537 (EF015362)
Type I
Gewicht (EF000167)
3 kg/m
Logistiek
Type verpakking 1
ST
Aantal verpakking 1
1
Gewicht verpakking 1
10,92 kg
Lengte verpakking 1
3000 mm
Breedte verpakking 1
400 mm
Hoogte verpakking 1
60 mm
GTIN verpakking 1
7321677377589
Douane code
7308909800
Netto gewicht
10,92 kg
Land van productie
NL
Certificering
ETIM classificatie
EC000854
Duurzaamheid
GWP Total A1-A3
26,97 kgCO2e
Product downloads
Duurzaamheidsdocumenten
Downloads
Duurzaamheidsverklaringen
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
