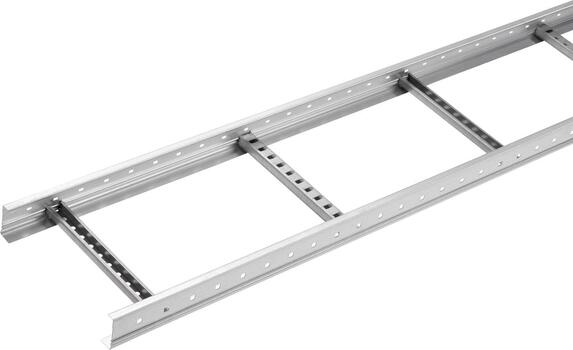

WHS 60x500 SA400 L=3m SV

Gecommercialiseerd

Artikelnummer

CSU737804

E-Nummer: *

GTIN: 7321677378043

Omschrijving: WHS 60x500 SA400 L=3m SV

Productinformatieblad

Product status

Gecommercialiseerd

Korte omschrijving

WHS 60x500 SA400 L=3m SV

Lengte

3000 mm

Breedte

500 mm

Hoogte

60 mm

Materiaal

Staal

Materiaaltype of oppervlaktebehandeling

Sendzimir verzinkt

Milieu corrosieklasse

Activiteit

Kabeldraagsystemen

Productfamilie

Ladderbanen

Merk

Stago

Serie

LB4000

GTIN

7321677378043

Uitvoering zijligger (EF007666)

Profiel (open vorm)

Zijperforatie (EF001122)

Uitvoeringsvorm sport (EF001060)

Profiel geperforeerd

Bevestiging sport (EF008307)

Gelast

Hoogte (EF000040)

60 mm

Breedte (EF000008)

500 mm

Lengte (EF001438)

3000 mm

Nuttige doorsnede (EF005140)

19500 mm²

Sportafstand hart/hart (EF008185)

400 mm

Uitvoering voor grote overspanningen (EF006397)

Nee

Geschikt voor functiebehoud (EF007806)

Nee

Materiaal (EF002169)

Staal

Kwaliteitsklasse (EF001257)

Oppervlaktebescherming (EF000139)

Bandverzinkt (sendzimir verzinkt)

Kleur (EF000007)

RAL (EF000116)

Max. veilige werkbelasting volgens IEC 61537 (EF016305)

* N/m

Overspanning tussen steunen volgens IEC 61537 (EF015363)

* mm

Belastingstesttype volgens IEC 61537 (EF015362)

Type I

Gewicht (EF000167)

2 kg/m

Type verpakking 1

Aantal verpakking 1

Gewicht verpakking 1

6,92 kg

Lengte verpakking 1

3000 mm

Breedte verpakking 1

500 mm

Hoogte verpakking 1

60 mm

GTIN verpakking 1

7321677378043

Douane code

7308909800

Netto gewicht

6,92 kg

Land van productie

ETIM classificatie

EC000854

GWP Total A1-A3

17,09 kgCO2e

Duurzaamheidsdocumenten

Artikelnummer

CSU737804

E-Nummer: *

GTIN: 7321677378043

Omschrijving: WHS 60x500 SA400 L=3m SV

Productinformatieblad

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)

WHS 60x500 SA400 L=3m SV
