W5-600 hvit GL30 2M Lokk
Aktiv artikkel
El nummer
1378446
Artikkelnummer:
729021
GTIN:
7321677290215
Beskrivelse:

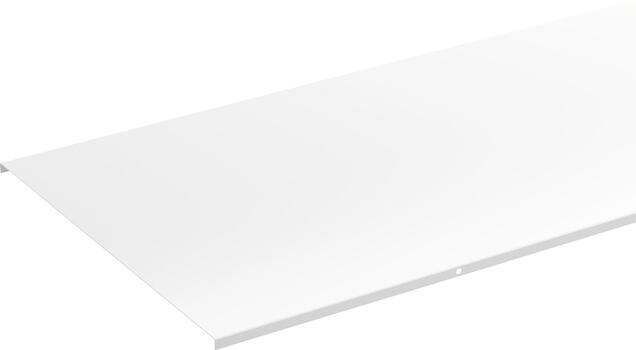

W5-600 hvit GL30 2M Lokk
Wibe Group. 1378446 - Wibe - Lokk W5, 600mm, Wibe, Fzs, Sendzimirforsinket Hvit Gl 50, 2M
Produktegenskaper
Status produkt
Produktstatus
Aktiv artikkel
Kommersiell og web
lokal kode (e-nr)
1378446
Vareteks
W5-600 hvit GL30 2M Lokk
Vareteks medium
Lokk W5, 600mm, Wibe, Fzs, Sendzimirforsinket Hvit Gl 50, 2M
Lengde
2000 mm
Bredde
600 mm
Materiale
Stål
Materialtype / overflatebehandling
Malt
Miljøkorrosjonsklasse
C2
Bas
Aktivitet
Kabelforleggning
Produktfamilie
Kabelrenner
Fabrikat
Wibe
GTIN
7321677290215
ETIM (EC002403-Deksel for kabelforleggingsystem)
Overdelsbredde (EF005146)
600 mm
Materialtykkelse (EF000386)
1 mm
Egnet for kabelrenne (EF005166)
Ja
Egnet for gitterrenne (EF005163)
Nei
Egnet for kabelstige (EF005165)
Ja
Lengde (EF001438)
2000 mm
Type feste (EF002442)
Dekselklammer
Egnet for funksjonsopprettholdelse (EF007806)
Nei
Materiale (EF002169)
Stål
Rustfritt stål, beiset (EF006388)
Nei
Materialkvalitet (EF001257)
*
Overflatebeskyttelse (EF000139)
Galvanisert og belagt
Farge (EF000007)
Hvit
RAL (EF000116)
9010
Logistikk
Forpakning 1 type
Stykke
Mengde FP 1
1
Vekt FP 1
8,14 kg
Dybde FP 1
2000 mm
Bredde FP 1
601 mm
Høyde FP 1
10 mm
Forpakning 4 type
Pall
Mengde FP 4
40
Vekt FP 4
356 kg
Dybde FP 4
2100 mm
Bredde FP 4
700 mm
Høyde FP 4
450 mm
Tolltariffnummer
73089059
Nettovekt
8,14 kg
Opprinnelsesland
SE
Sertifisering
ETIM-klasse
EC002403
Produktnedlastinger
Environmental Documents
Nedlastninger
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
