T-avgr 60x300 RAL1023
Aktiv artikkel
El nummer
*
Artikkelnummer:
CSU08626309FS123
GTIN:
3606481112224
Beskrivelse:
T-avgr 60x300 RAL1023

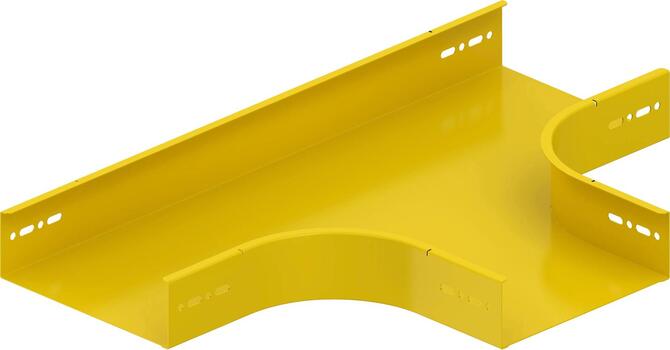

Wibe Group. CSU08626309FS123 - Stago - t-piece flat 60x300mm pre-galvanized
Produktegenskaper
Status produkt
Produktstatus
Aktiv artikkel
Kommersiell og web
Vareteks
T-avgr 60x300 RAL1023
Vareteks medium
T-avgr 60x300 RAL1023
Bredde
300 mm
Materiale
Stål
Materialtype / overflatebehandling
Malt
Applikasjon
datacenter
Miljøkorrosjonsklasse
C2
Bas
Aktivitet
Kabelforleggning
Produktfamilie
Kabelrenner
Fabrikat
Stago
Serie
FOD
GTIN
3606481112224
ETIM (EC001544-T-stykke for kabelrenne)
Kabelrenne høyde (EF004822)
60 mm
Kabelrenne bredde (EF004820)
300 mm
Konstruktionstype (EF000767)
T-stykke, vannrett
Innvendig radius (EF004793)
* mm
NATO hullmønster (EF006059)
Nei
Modell / utførelse (EF000010)
Uten skjøtestykke
Forsterket uførelse (EF006397)
Nei
Egnet for funksjonsopprettholdelse (EF007806)
Nei
Materiale (EF002169)
Stål
Rustfritt stål, beiset (EF006388)
Nei
Materialkvalitet (EF001257)
Andre
Overflatebeskyttelse (EF000139)
Galvanisert og belagt
Farge (EF000007)
Gul
RAL (EF000116)
1023
Logistikk
Vekt FP 1
2,353 kg
Dybde FP 1
706 mm
Bredde FP 1
505 mm
Høyde FP 1
64 mm
Tolltariffnummer
7308909800
Nettovekt
2,35 kg
Opprinnelsesland
NL
Sertifisering
ETIM-klasse
EC001544
Produktnedlastinger
Environmental Documents
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
