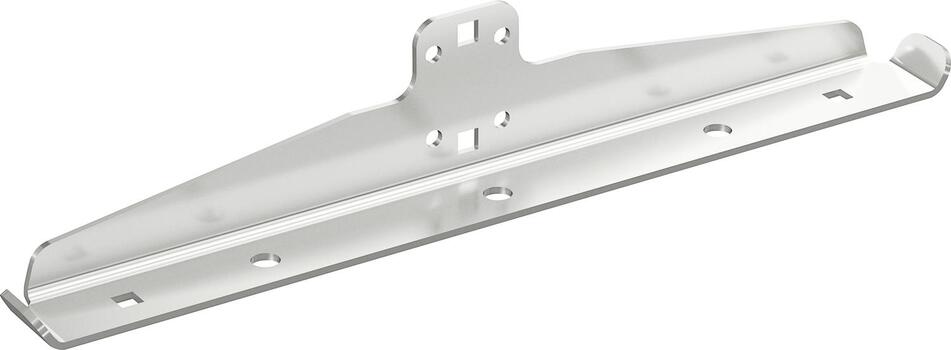

3/300 SF BÆREJERN

Aktiv artikkel

El nummer

1358713

Artikkelnummer: 726435

GTIN: 7321677264353

Beskrivelse: 3/300 Sf Bærejern

Wibe Group. 1358713 - Wibe - Bærejern 3, 300mm, Wibe, Sf, Syrefast

Konfigurator

Produktblad

Produktstatus

Aktiv artikkel

lokal kode (e-nr)

1358713

Vareteks

3/300 Sf Bærejern

Vareteks medium

Bærejern 3, 300mm, Wibe, Sf, Syrefast

Bredde

300 mm

Materiale

Rustfritt stål

Materialtype / overflatebehandling

AISI316L - Syrefast

Miljøkorrosjonsklasse

Aktivitet

Kabelforleggning

Produktfamilie

Opphengssystem

Fabrikat

Wibe

GTIN

7321677264353

Lengde (EF001438)

* mm

Bredde (EF000008)

300 mm

Høyde (EF000040)

70 mm

Egnet for kabelforlegningssystem bredde (EF008339)

300 - 300 mm

Modell / utførelse (EF000010)

Nedhengt

Vinkelområde (EF005434)

* °

Nyttelastkapasitet (EF002918)

16000 kN

Egnet for funksjonsopprettholdelse (EF007806)

Nei

Materiale (EF002169)

Rustfritt stål

Materialkvalitet (EF001257)

Rustfritt og syrefast stål

Overflatebeskyttelse (EF000139)

Farge (EF000007)

RAL (EF000116)

Forpakning 1 type

Stykke

Mengde FP 1

Vekt FP 1

0,47 kg

Dybde FP 1

318 mm

Bredde FP 1

40 mm

Høyde FP 1

70 mm

GTIN FP 1

7321677264353

Forpakning 4 type

Pall

Mengde FP 4

230

Vekt FP 4

139 kg

Dybde FP 4

1200 mm

Bredde FP 4

800 mm

Høyde FP 4

340 mm

Tolltariffnummer

73089059

Nettovekt

0,47 kg

Opprinnelsesland

ETIM-klasse

EC000022

GWP Total A1-A3

2,7448 kgCO2e

Environmental Documents

cx

22S Sf 8X16 Skruesats

El nummer: 1356534
GTIN: 7321677255825

El nummer

1358713

Artikkelnummer: 726435

GTIN: 7321677264353

Beskrivelse: 3/300 Sf Bærejern

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
