15/200 Sf 90 GR Bøy indre
Aktiv artikkel
El nummer
1358762
Artikkelnummer:
727347
GTIN:
7321677273478
Beskrivelse:

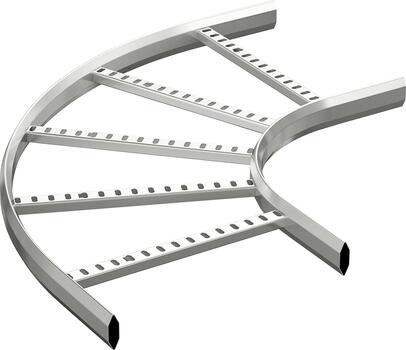

15/200 Sf 90 GR Bøy indre
Wibe Group. 1358762 - Wibe - Bøy 15, 90 Grader, Indre Sving, 200mm, Wibe, Sf, Syrefast
Produktegenskaper
Status produkt
Produktstatus
Aktiv artikkel
Kommersiell og web
lokal kode (e-nr)
1358762
Vareteks
15/200 Sf 90 GR Bøy indre
Vareteks medium
Bøy 15, 90 Grader, Indre Sving, 200mm, Wibe, Sf, Syrefast
Bredde
200 mm
Materiale
Rustfritt stål
Materialtype / overflatebehandling
AISI316L - Syrefast
Miljøkorrosjonsklasse
CX
Bas
Aktivitet
Kabelforleggning
Produktfamilie
Kabelstiger
Fabrikat
Wibe
GTIN
7321677273478
ETIM (EC001535-Bøy for kabelstige)
Retningsendring (EF005210)
Horisontal
Type sidebjelker (EF007666)
Rørform (lukket)
Sideveggsperforering (EF001122)
Nei
Type trinn (EF001060)
Profil, hullet
Vinkel (verdi) (EF001218)
90°
Bøyningsuførelse (EF020423)
Glatt bøy
Hengslet (EF001076)
Nei
Kabelstige høyde (EF004818)
55 mm
Kabelstige bredde (EF004817)
200 mm
Modell / utførelse (EF000010)
Uten skjøtestykke
Innvendig radius (EF004793)
268 mm
Forsterket uførelse (EF006397)
Nei
Egnet for funksjonsopprettholdelse (EF007806)
Nei
Materiale (EF002169)
Rustfritt stål
Materialkvalitet (EF001257)
Rustfritt stål 316 (1.4401)
Overflatebeskyttelse (EF000139)
*
Farge (EF000007)
*
RAL (EF000116)
*
Logistikk
Forpakning 1 type
Stykke
Mengde FP 1
1
Vekt FP 1
2 kg
Dybde FP 1
597 mm
Bredde FP 1
597 mm
Høyde FP 1
55 mm
Forpakning 4 type
Pall
Mengde FP 4
28
Vekt FP 4
83 kg
Dybde FP 4
1200 mm
Bredde FP 4
900 mm
Høyde FP 4
440 mm
Tolltariffnummer
73089059
Nettovekt
2 kg
Opprinnelsesland
SE
Sertifisering
ETIM-klasse
EC001535
Miljø
GWP Total A1-A3
11,68 kgCO2e
Produktnedlastinger
Environmental Documents
Nedlastninger
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
