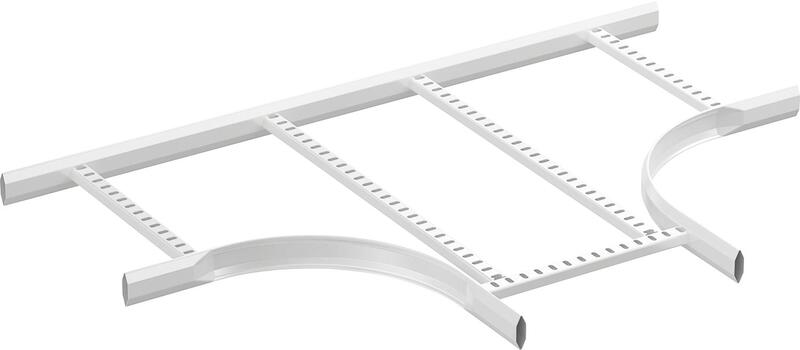

T-avgr 16-150 ZP hvit
Aktiv artikkel
El nummer
1344053
Artikkelnummer:
716201
GTIN:
7321677162017
Beskrivelse:
T-avgr 16-150 ZP hvit
Produktegenskaper
Status produkt
Produktstatus
Aktiv artikkel
Kommersiell og web
lokal kode (e-nr)
1344053
Vareteks
T-avgr 16-150 ZP hvit
Vareteks medium
T-avgr 16-150 varmforsinket hvit
Bredde
150 mm
Materiale
Stål
Materialtype / overflatebehandling
Zinkpox
Miljøkorrosjonsklasse
C5
Bas
Aktivitet
Kabelforleggning
Produktfamilie
Kabelstiger
Fabrikat
Wibe
GTIN
7321677162017
ETIM (EC001540-T-stykke for kabelstige)
Type sidebjelker (EF007666)
Rørform (lukket)
Type trinn (EF001060)
Profil, hullet
Kabelstige høyde (EF004818)
55 mm
Kabelstige bredde (EF004817)
150 mm
Kabelstige utgangsbredde (EF004816)
150 mm
Symmetrisk utførelse (EF006521)
Nei
Innvendig radius (EF004793)
268 mm
Modell / utførelse (EF000010)
Uten skjøtestykke
Forsterket uførelse (EF006397)
Nei
Egnet for funksjonsopprettholdelse (EF007806)
Nei
Materiale (EF002169)
Stål
Materialkvalitet (EF001257)
*
Overflatebeskyttelse (EF000139)
Varmgalvanisert og overflatebelagt
Farge (EF000007)
Hvit
RAL (EF000116)
9010
Logistikk
Forpakning 1 type
Stykke
Mengde FP 1
1
Vekt FP 1
3 kg
Dybde FP 1
944 mm
Bredde FP 1
547 mm
Høyde FP 1
55 mm
Tolltariffnummer
73089059
Nettovekt
3 kg
Opprinnelsesland
SE
Sertifisering
ETIM-klasse
EC001540
Produktnedlastinger
Environmental Documents
Nedlastninger
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
