B35/320-422 Midtkonsoll Elz
Aktiv artikkel
El nummer
1361120
Artikkelnummer:
1149120
GTIN:
7332227011204
Beskrivelse:
D35/320-422 MidtKonsoll Elz
Wibe Group. 1361120 - Defem - Midtkonsoll B35, 320-422mm, ELZ, el-forsinket
Produktegenskaper
Status produkt
Produktstatus
Aktiv artikkel
Kommersiell og web
lokal kode (e-nr)
1361120
Vareteks
D35/320-422 MidtKonsoll Elz
Vareteks medium
Midtkonsoll B35, 320-422mm, ELZ, el-forsinket
Materiale
Stål
Materialtype / overflatebehandling
El-forsinket
Miljøkorrosjonsklasse
C1
Bas
Aktivitet
Kabelforleggning
Produktfamilie
Opphengssystem
Fabrikat
Defem
Serie
Defem
GTIN
7332227011204
ETIM (EC000022-Brakett for kabelforleggingsystem)

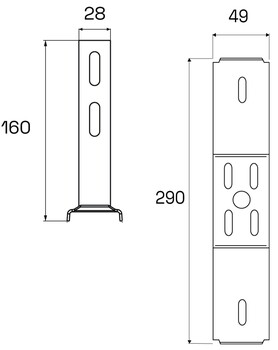

Lengde (EF001438)
290 mm
Bredde (EF000008)
49 mm
Høyde (EF000040)
161 mm
Egnet for kabelforlegningssystem bredde (EF008339)
320 - 422 mm
Modell / utførelse (EF000010)
Nedhengt
Vinkelområde (EF005434)
0-90 ° °
Nyttelastkapasitet (EF002918)
1245 kN
Egnet for funksjonsopprettholdelse (EF007806)
Nei
Materiale (EF002169)
Stål
Materialkvalitet (EF001257)
*
Overflatebeskyttelse (EF000139)
Galvanisk/elektrolyttisk forsinket
Farge (EF000007)
*
RAL (EF000116)
*
Logistikk
Forpakning 1 type
Stykke
Mengde FP 1
1
Vekt FP 1
0,409 kg
Dybde FP 1
300 mm
Bredde FP 1
95 mm
Høyde FP 1
60 mm
GTIN FP 1
7332227011204
Forpakning 4 type
Pall
Mengde FP 4
384
Vekt FP 4
407 kg
Dybde FP 4
1200 mm
Bredde FP 4
800 mm
Høyde FP 4
740 mm
Tolltariffnummer
73089098
Nettovekt
0,41 kg
Opprinnelsesland
SE
Sertifisering
ETIM-klasse
EC000022
Miljø
GWP Total A1-A3
0,61759 kgCO2e
Produktnedlastinger
Nedlastninger
Environmental Products
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
