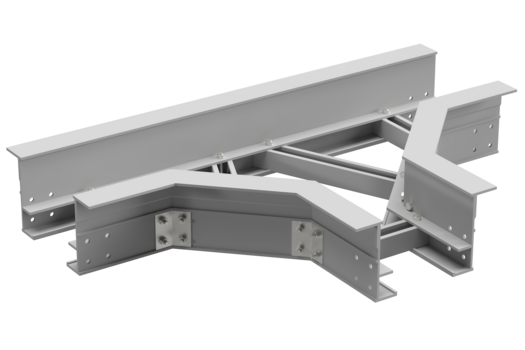

GXL Equal tee 200mm PY1

Commercialized

Item number

GXT200PY1

Local code: *

GTIN: 7321678018023

Description: GXL Equal tee 200mm PY1

Download PDF

Product status

Commercialized

Short description

GXL Equal tee 200mm PY1

Medium description

Mita - GXL Equal tee 200 mm - alternating slotted/solid rungs - GRP PY1

Material

GRP

Material type or surface treatment

PY1

Environmental corrosion class

Activity

Cable support systems

Product family

Cable ladders

Brand

Mita

Range

GXL

GTIN

7321678018023

Type of side joist (EF007666)

Type of rung (EF001060)

Cable ladder branch width (EF004816)

* mm

Cable ladder height (EF004818)

* mm

Inner radius (EF004793)

* mm

Model (EF000010)

Wide span model (EF006397)

Suitable for circuit integrity (EF007806)

Material (EF002169)

Material quality (EF001257)

Surface protection (EF000139)

Colour (EF000007)

RAL (EF000116)

Pack 1 type

Each

Quantity pack 1

Weight pack 1

9.2 kg

Length pack 1

944 mm

Width pack 1

200 mm

Height pack 1

150 mm

Customs code

39169010

Net weight

9.2 kg

Country of origin

ETIM class

EC001010

BS 476 – Part 7(1997)

Passed

BS EN 60695-2-12:2001

Passed

UL94 V0

Passed

UL94 5VA

Passed

Environmental Documents

Item number

GXT200PY1

Local code: *

GTIN: 7321678018023

Description: GXL Equal tee 200mm PY1

Download PDF

Corrosion class		C1	C2	C3	C4	C5	CX
Environmental corrosion		Very low	Low	Average	High	Very high	Extreme
Examples of environments	Indoors	Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels.	Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses.	Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries.	High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards.	Buildings with almost permanent condensation and with high pollution	Industrial buildings with extreme humidity and aggressive atmosphere.
Examples of environments	Outdoors		Atmospheres with low levels of airborne pollution. Rural areas.	Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions.	Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas.	Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity	Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation Exceeds requirements. Extremely high durability. Recommended very high durability ( >20 years) Possible alternative. High durability (10-20 years)	Electro-galvanized (EG)
	Pre-galvanized (PG)
	Zinc+ (Z+)
	Hot-dip galvanized (HDG)
	Zinkpox (ZP)
	Stainless steel AISI 304L(SS304)
	Stainless steel AISI 316L (SS316)
	Glass Fibre Reinforced Polymer (FRP/GRP)
