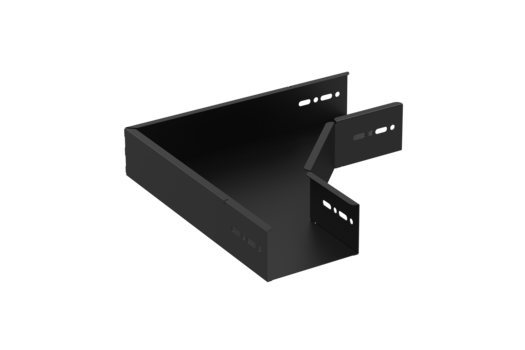

HOEKSTUK VAST 120 zwart
Gecommercialiseerd
Artikelnummer
CSU0861209M905
E-Nummer:
*
GTIN:
8720871002980
Omschrijving:
HOEKSTUK VAST 120 zwart
Eigenschappen
Status Product
Product status
Gecommercialiseerd
Product Omschrijving
Korte omschrijving
HOEKSTUK VAST 120 zwart
Medium omschrijving
KG281 - Hoekstuk - vast - 120x60mm - 64x323x323mm - R9005/30
Lengte
323 mm
Breedte
323 mm
Hoogte
62 mm
Materiaal
Staal
Materiaaltype of oppervlaktebehandeling
Gecoat
Milieu corrosieklasse
C2
Kleur
Zwart RAL9005/30
Basis
Activiteit
Kabeldraagsystemen
Productfamilie
Kabelgoten
Merk
Stago
Serie
KG281
GTIN
8720871002980
ETIM (EC002400-Bocht/hoekstuk kabelgoot)
Richtingsverandering (EF005210)
*
Hoek (EF001218)
*
Bouwvorm (EF000767)
*
Bochtuitvoering (EF020423)
*
Met bovendeel (EF007965)
*
Binnenstraal (EF004793)
* mm
Kabelgoothoogte (EF004822)
* mm
Kabelgootbreedte (EF004820)
* mm
Materiaaldikte (EF000386)
* mm
Zijperforatie (EF001122)
*
Montageperforatie in bodem (EF004545)
*
Nato perforatie (EF006059)
*
Uitvoering (EF000010)
*
Uitvoering voor grote overspanningen (EF006397)
*
Geschikt voor functiebehoud (EF007806)
Nee
Materiaal (EF002169)
Staal
Roestvaststaal (RVS), gebeitst (EF006388)
Nee
Kwaliteitsklasse (EF001257)
Overig
Oppervlaktebescherming (EF000139)
Bandverzinkt (sendzimir verzinkt) en gecoat
Kleur (EF000007)
Zwart
RAL (EF000116)
9005
Logistiek
Douane code
73089098
Netto gewicht
0,87 kg
Land van productie
NL
Certificering
ETIM classificatie
EC002400
Duurzaamheid
GWP Total A1-A3
3,505 kgCO2e
Product downloads
Duurzaamheidsdocumenten
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
