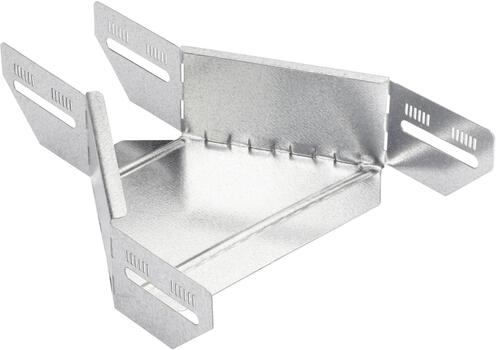

VERLOOPSTUK VLAK 200-250 H=60
Gecommercialiseerd
Artikelnummer
CSU36256402
E-Nummer:
*
GTIN:
8712186065712
Omschrijving:
VERLOOPSTUK VLAK 200-250 H=60
Wibe Group. CSU36256402 - Stago - KG281 - verloopstuk - vlak - 200-250x60mm - 14x391x256mm - sendzimir verzinkt
Eigenschappen
Status Product
Product status
Gecommercialiseerd
Product Omschrijving
Korte omschrijving
VERLOOPSTUK VLAK 200-250 H=60
Medium omschrijving
KG 281 - Verloopstuk - Vlak - 200-250x60mm - 14x391x256mm - Sendzimir verzinkt
Materiaal
Staal
Materiaaltype of oppervlaktebehandeling
Sendzimir verzinkt
Milieu corrosieklasse
C2
Basis
Activiteit
Kabeldraagsystemen
Productfamilie
Kabelgoten
Merk
Stago
GTIN
8712186065712
ETIM (EC001007-Verloopstuk kabelgoot)
Kabelgoothoogte (EF004822)
60 mm
Breedte (groot) (EF001305)
250 mm
Breedte (klein) (EF001306)
200 mm
Bouwvorm (EF000767)
Reducering symmetrisch
Uitvoering (EF000010)
Zonder verbinder
Uitvoering voor grote overspanningen (EF006397)
*
Geschikt voor functiebehoud (EF007806)
Nee
Materiaal (EF002169)
Staal
Roestvaststaal (RVS), gebeitst (EF006388)
Nee
Kwaliteitsklasse (EF001257)
Overig
Oppervlaktebescherming (EF000139)
Bandverzinkt (sendzimir verzinkt)
Kleur (EF000007)
*
RAL (EF000116)
*
Logistiek
Gewicht verpakking 1
,336 kg
Lengte verpakking 1
392 mm
Breedte verpakking 1
256 mm
Hoogte verpakking 1
10 mm
Douane code
7308909800
Netto gewicht
,34 kg
Land van productie
NL
Certificering
ETIM classificatie
EC001007
Duurzaamheid
GWP Total A1-A3
,83 kgCO2e
Product downloads
Duurzaamheidsdocumenten
Downloads
Duurzaamheidsverklaringen
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
