VERLOOPSTUK VLAK 200-250 H=60 R1013/70

/storage/9CA80F359CF4FE4DDF3A6370AA848937B2F302C62D20D712C505F3172A7DF07F/89aa91b3b9774bd0b5bcb0daf52d4f0c/jpg/media/1a5158a2e9dc4c4fbfb9a61a84567b21/CSU36256412.jpg
Gecommercialiseerd

Artikelnummer

CSU36256412

E-Nummer: *
GTIN: 8712186068744
Omschrijving: VERL.ST.GS.60-200/250 R1013/70

Milieu corrosieklasse

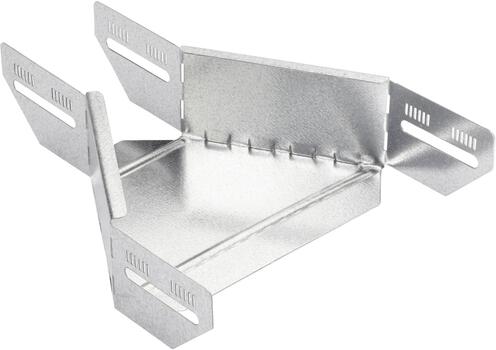

Wibe Group. CSU36256412 - Stago - KG281 - verloopstuk - vlak - 200-250x60mm - 14x391x256mm - gelakt - ral1013

Eigenschappen

Status Product
Product status
Gecommercialiseerd
Product Omschrijving
Korte omschrijving
VERL.ST.GS.60-200/250 R1013/70
Medium omschrijving
KG 281 - Verloopstuk - Vlak - 200-250x60mm - 14x391x256mm - Gelakt - RAL1013
Materiaal
Staal
Materiaaltype of oppervlaktebehandeling
Gecoat
Milieu corrosieklasse
C2
Basis
Activiteit
Kabeldraagsystemen
Productfamilie
Kabelgoten
Merk
Stago
GTIN
8712186068744
ETIM (EC001007-Verloopstuk kabelgoot)
Kabelgoothoogte (EF004822)
60 mm
Breedte (groot) (EF001305)
250 mm
Breedte (klein) (EF001306)
200 mm
Bouwvorm (EF000767)
Reducering symmetrisch
Uitvoering (EF000010)
Zonder verbinder
Uitvoering voor grote overspanningen (EF006397)
*
Geschikt voor functiebehoud (EF007806)
Nee
Materiaal (EF002169)
Staal
Roestvaststaal (RVS), gebeitst (EF006388)
Nee
Kwaliteitsklasse (EF001257)
Overig
Oppervlaktebescherming (EF000139)
Bandverzinkt (sendzimir verzinkt) en gecoat
Kleur (EF000007)
*
RAL (EF000116)
1013
Logistiek
Gewicht verpakking 1
,349 kg
Lengte verpakking 1
392 mm
Breedte verpakking 1
256 mm
Hoogte verpakking 1
10 mm
Douane code
7308909800
Netto gewicht
,35 kg
Certificering
ETIM classificatie
EC001007

Downloads

Duurzaamheidsverklaringen

Artikelnummer

CSU36256412

E-Nummer: *
GTIN: 8712186068744
Omschrijving: VERL.ST.GS.60-200/250 R1013/70

Milieu corrosieklasse

Corrosion class C1 C2 C3 C4 C5 CX
Environmental corrosion Very low Low Average High Very high Extreme
Examples of environments Indoors Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. Buildings with almost permanent condensation and with high pollution Industrial buildings with extreme humidity and aggressive atmosphere.
Outdoors   Atmospheres with low levels of airborne pollution. Rural areas. Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation

Recommended Very high durability(>20 years)

Possible alternative. High durability(10-20 years)
Electro-galvanized(EG)



Pre-galvanized(PG)




Zinc+(Z+)





Hot-dip galvanized(HDG)






Zinkpox(ZP)






Stainless steelAISI 304L(SS304)






Stainless steelAISI 316L(SS316)






Glass Fibre Reinforced Polymer(FP/GRP)







Thistable shows estimated values.
For more details advice, please contact technical support at Wibe Group
