VERVALSTUK 600 R9016/70
Gecommercialiseerd
Artikelnummer
CSU0866819916
E-Nummer:
*
GTIN:
8712186116384
Omschrijving:

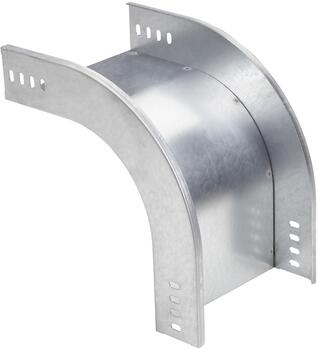

VERVALSTUK 600 R9016/70
Wibe Group. CSU0866819916 - Stago - KG281 - vervalstuk - gezet - 600x60mm - 283x603x283mm - gelakt - ral9016
Eigenschappen
Status Product
Product status
Gecommercialiseerd
Product Omschrijving
Korte omschrijving
VERVALSTUK 600 R9016/70
Medium omschrijving
KG 281 - Vervalstuk - Gezet - 600x60mm - 283x603x283mm - Gelakt - RAL9016
Breedte
600 mm
Materiaal
Staal
Materiaaltype of oppervlaktebehandeling
Gecoat
Milieu corrosieklasse
C2
Basis
Activiteit
Kabeldraagsystemen
Productfamilie
Kabelgoten
Merk
Stago
GTIN
8712186116384
ETIM (EC002400-Bocht/hoekstuk kabelgoot)
Richtingsverandering (EF005210)
Stijgend/vallend
Hoek (EF001218)
*
Bouwvorm (EF000767)
Bocht star
Bochtuitvoering (EF020423)
Gladde bocht
Met bovendeel (EF007965)
Nee
Binnenstraal (EF004793)
120 mm
Kabelgoothoogte (EF004822)
60 mm
Kabelgootbreedte (EF004820)
600 mm
Materiaaldikte (EF000386)
1 mm
Zijperforatie (EF001122)
Ja
Montageperforatie in bodem (EF004545)
Nee
Nato perforatie (EF006059)
Nee
Uitvoering (EF000010)
Zonder verbinder
Uitvoering voor grote overspanningen (EF006397)
Nee
Geschikt voor functiebehoud (EF007806)
Nee
Materiaal (EF002169)
Staal
Roestvaststaal (RVS), gebeitst (EF006388)
Nee
Kwaliteitsklasse (EF001257)
Overig
Oppervlaktebescherming (EF000139)
Bandverzinkt (sendzimir verzinkt) en gecoat
Kleur (EF000007)
Wit
RAL (EF000116)
9016
Logistiek
Aantal verpakking 1
1
Gewicht verpakking 1
2,396 kg
Lengte verpakking 1
284 mm
Breedte verpakking 1
284 mm
Hoogte verpakking 1
603 mm
GTIN verpakking 1
8712186116384
Douane code
7308909800
Netto gewicht
2,4 kg
Certificering
ETIM classificatie
EC002400
Product downloads
Duurzaamheidsdocumenten
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
