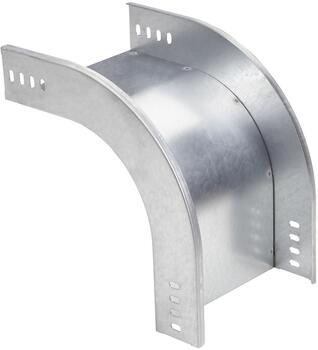

VERVALSTUK 70 R9010/60

/storage/C84B6663A74AF954E5D722D0CCB6D7FD8E65C5550CBBC96AC03744ABF902DF27/570c38eaeb0345848173dd0f56c03448/jpg/media/cc27de2ea45d472998c51f5368df71c8/CSU08661079.jpg
Gecommercialiseerd

Artikelnummer

CSU08661079

E-Nummer: *
GTIN: 8712186116278
Omschrijving: VERVALSTUK 70 R9010/60

Milieu corrosieklasse

Wibe Group. CSU08661079 - Stago - KG281 - vervalstuk - gezet - 70x60mm - 283x73x283mm - gelakt - ral9010

Eigenschappen

Status Product
Product status
Gecommercialiseerd
Product Omschrijving
Korte omschrijving
VERVALSTUK 70 R9010/60
Medium omschrijving
KG 281 - Vervalstuk - Gezet - 70x60mm - 283x73x283mm - Gelakt - RAL9010
Breedte
70 mm
Materiaal
Staal
Materiaaltype of oppervlaktebehandeling
Gecoat
Milieu corrosieklasse
C2
Basis
Activiteit
Kabeldraagsystemen
Productfamilie
Kabelgoten
Merk
Stago
GTIN
8712186116278
ETIM (EC002400-Bocht/hoekstuk kabelgoot)
Richtingsverandering (EF005210)
Stijgend/vallend
Hoek (EF001218)
90°
Bouwvorm (EF000767)
Bocht star
Bochtuitvoering (EF020423)
Gladde bocht
Met bovendeel (EF007965)
Nee
Binnenstraal (EF004793)
120 mm
Kabelgoothoogte (EF004822)
60 mm
Kabelgootbreedte (EF004820)
70 mm
Materiaaldikte (EF000386)
1 mm
Zijperforatie (EF001122)
Ja
Montageperforatie in bodem (EF004545)
Nee
Nato perforatie (EF006059)
Nee
Uitvoering (EF000010)
Zonder verbinder
Uitvoering voor grote overspanningen (EF006397)
Nee
Geschikt voor functiebehoud (EF007806)
Nee
Materiaal (EF002169)
Staal
Roestvaststaal (RVS), gebeitst (EF006388)
Nee
Kwaliteitsklasse (EF001257)
Overig
Oppervlaktebescherming (EF000139)
Bandverzinkt (sendzimir verzinkt) en gecoat
Kleur (EF000007)
Wit
RAL (EF000116)
9010
Logistiek
Aantal verpakking 1
1
Gewicht verpakking 1
,735 kg
Lengte verpakking 1
284 mm
Breedte verpakking 1
284 mm
Hoogte verpakking 1
73 mm
GTIN verpakking 1
8712186116278
Douane code
7308909800
Netto gewicht
,74 kg
Certificering
ETIM classificatie
EC002400

Downloads

Duurzaamheidsverklaringen

Artikelnummer

CSU08661079

E-Nummer: *
GTIN: 8712186116278
Omschrijving: VERVALSTUK 70 R9010/60

Milieu corrosieklasse

Corrosion class C1 C2 C3 C4 C5 CX
Environmental corrosion Very low Low Average High Very high Extreme
Examples of environments Indoors Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. Buildings with almost permanent condensation and with high pollution Industrial buildings with extreme humidity and aggressive atmosphere.
Outdoors   Atmospheres with low levels of airborne pollution. Rural areas. Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres.
Wibe Group designation

Recommended Very high durability(>20 years)

Possible alternative. High durability(10-20 years)
Electro-galvanized(EG)



Pre-galvanized(PG)




Zinc+(Z+)





Hot-dip galvanized(HDG)






Zinkpox(ZP)






Stainless steelAISI 304L(SS304)






Stainless steelAISI 316L(SS316)






Glass Fibre Reinforced Polymer(FP/GRP)







Thistable shows estimated values.
For more details advice, please contact technical support at Wibe Group
