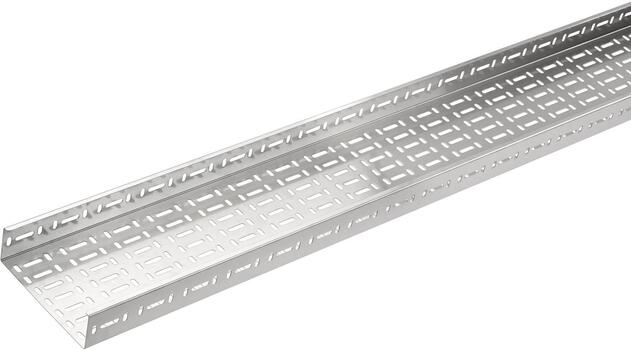

ES114 GEPERF. 250 H=60 L=3m AISI304
Gecommercialiseerd
Artikelnummer
CSU76702534
E-Nummer:
*
GTIN:
8712186093265
Omschrijving:
ES114 GEPERF. 250 H=60 L=3m AISI304
Wibe Group. CSU76702534 - Stago - es114 - kabelgoot - geperforeerd - 250x60mm - l=3m - 1mm - rvs - aisi 304
Eigenschappen
Status Product
Product status
Gecommercialiseerd
Product Omschrijving
Korte omschrijving
ES114 GEPERF. 250 H=60 L=3m AISI304
Medium omschrijving
Stago - ES114 - Kabelgoot - Geperforeerd - 250x60mm - L=3m - 1mm - RVS - AISI 304
Lengte
3000 mm
Breedte
250 mm
Hoogte
60 mm
Materiaal
Roestvast staal
Materiaaltype of oppervlaktebehandeling
RVS304
Milieu corrosieklasse
C5
Basis
Activiteit
Kabeldraagsystemen
Productfamilie
Kabelgoten
Merk
Stago
Serie
ES114
GTIN
8712186093265
ETIM (EC000047-Kabelgoot)
Hoogte (EF000040)
60 mm
Breedte (EF000008)
250 mm
Materiaaldikte (EF000386)
1 mm
Lengte (EF001438)
3000 mm
Nuttige doorsnede (EF005140)
15000 mm²
Met bovendeel (EF007965)
Nee
Zijperforatie (EF001122)
Ja
Montageperforatie in bodem (EF004545)
Ja
Nato perforatie (EF006059)
Nee
Uitvoering (EF000010)
Zonder verbinder
Uitvoering voor grote overspanningen (EF006397)
Nee
Geschikt voor functiebehoud (EF007806)
Nee
Materiaal (EF002169)
Roestvaststaal (RVS)
Roestvaststaal (RVS), gebeitst (EF006388)
Ja
Kwaliteitsklasse (EF001257)
RVS V2A
Oppervlaktebescherming (EF000139)
Overig
Kleur (EF000007)
*
RAL (EF000116)
*
Gewicht (EF000167)
* kg/m
Max. veilige werkbelasting volgens IEC 61537 (EF016305)
* N/m
Overspanning tussen steunen volgens IEC 61537 (EF015363)
* mm
Belastingstesttype volgens IEC 61537 (EF015362)
*
Logistiek
Type verpakking 1
ST
Aantal verpakking 1
1
Gewicht verpakking 1
7 kg
Lengte verpakking 1
3000 mm
Breedte verpakking 1
250 mm
Hoogte verpakking 1
60 mm
Douane code
7308909800
Netto gewicht
7 kg
Land van productie
NL
Certificering
ETIM classificatie
EC000047
Product downloads
Duurzaamheidsdocumenten
| Corrosion class | C1 | C2 | C3 | C4 | C5 | CX | |
| Environmental corrosion | Very low | Low | Average | High | Very high | Extreme | |
| Examples of environments | Indoors | Heated areas with arid atmosphere and insignificant quantities of pollutant, e.g. offices, shops, schools and hotels. | Non-heated areas with fluctuating levels of temperature and humidity. Few instances of condensation and low levels of airborne pollution, e.g. sports halls and warehouses. | Average levels of humidity and some airborne pollution resulting from production processes, e.g. breweries, dairies, laundries. | High humidity and considerable airborne pollution as the result of production processes, e.g. chemical plants, swimming pools and dockyards. | Buildings with almost permanent condensation and with high pollution | Industrial buildings with extreme humidity and aggressive atmosphere. |
| Outdoors | Atmospheres with low levels of airborne pollution. Rural areas. | Atmospheres containing some salt or average levels of air-borne pollution. Urban and light industrial areas. Areas affected by coastal conditions. | Atmospheres with average salt content or discernible levels of airborne pollution. Industrial and coastal areas. | Industrial areas with high humidity and aggressive atmosphere, and coastal areas with high salinity | Offshore areas with high salinity, industrial areas with extreme humidity, and aggressive atmospheres, sub-tropical or tropical atmospheres. | ||
|
Wibe Group designation
Exceeds requirements. Extremely high durability.
Recommended very high durability ( >20 years)
Possible alternative. High durability (10-20 years) |
Electro-galvanized (EG) |
|
|
||||
| Pre-galvanized (PG) |
|
|
|
||||
| Zinc+ (Z+) |
|
|
|
|
|||
| Hot-dip galvanized (HDG) |
|
|
|
|
|
||
| Zinkpox (ZP) |
|
|
|
|
|
|
|
| Stainless steel AISI 304L(SS304) |
|
|
|
|
|
|
|
| Stainless steel AISI 316L (SS316) |
|
|
|
|
|
|
|
| Glass Fibre Reinforced Polymer (FRP/GRP) |
|
|
|
|
|
|
|
This table shows estimated values.
For more detailed advice, please contact technical support at Wibe Group
